Our AD-RC02 LED Multi-Function Universal Lighting System brings your rig to the next level in realism! No programming cards or jumper switches needed - the AD-RC02 can be operated and programmed using your existing remote transmitter. Compatible with most 2-channel (or more) radio systems, the AD-RC02 features: multiple LED light functions, remote switchable head lamps from low-beam to high-beam to “off”, auto brake with 3 tail lamp modes, programmable proportional brake lamp intensity, programmable automatic reverse lamps with switchable reverse beep sound, and auto or manual turn signal modes.

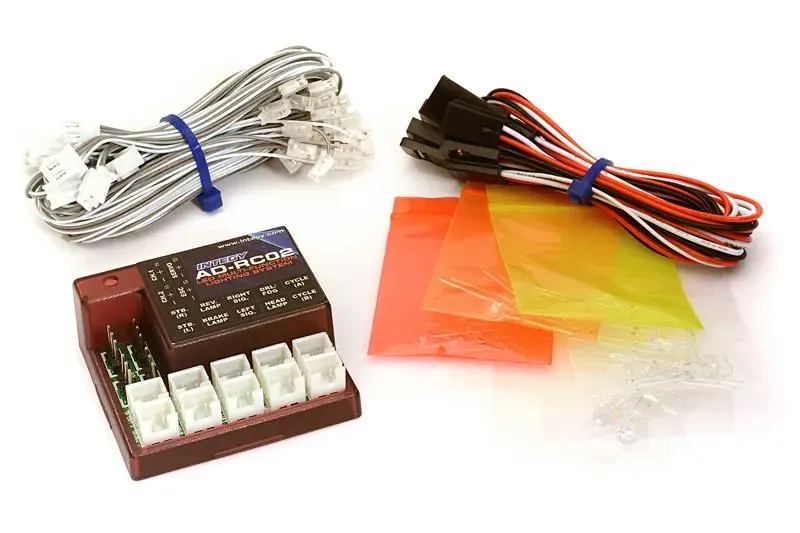

The AD-RC02 is powered by your receiver's 5V-6V BEC so no extra external power source is required. This is the universal version designed so you can install LEDs into your own 1/10 scale rig or rock crawler body. There are also extra ports for our optional LED rock lamp kit (#C28259). The AD-RC02 LED Multi-Function Universal Lighting System includes all required cables for a plug-and-play installation.

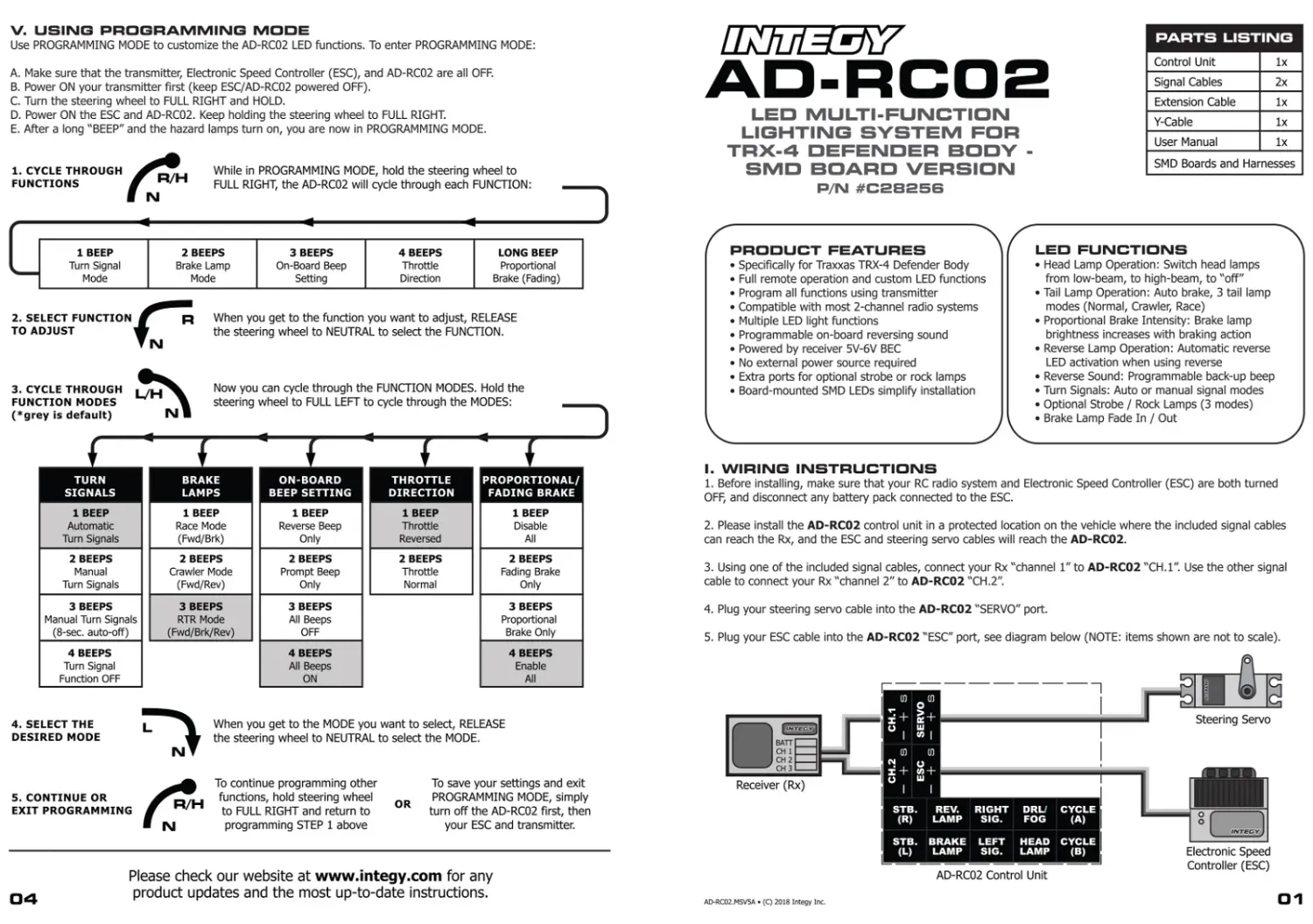

Installation and User Manual: C28258 Manual for LED Multi-Function Lighting System (Universal Version)

Item# C28258 Barcode: 91789030989
