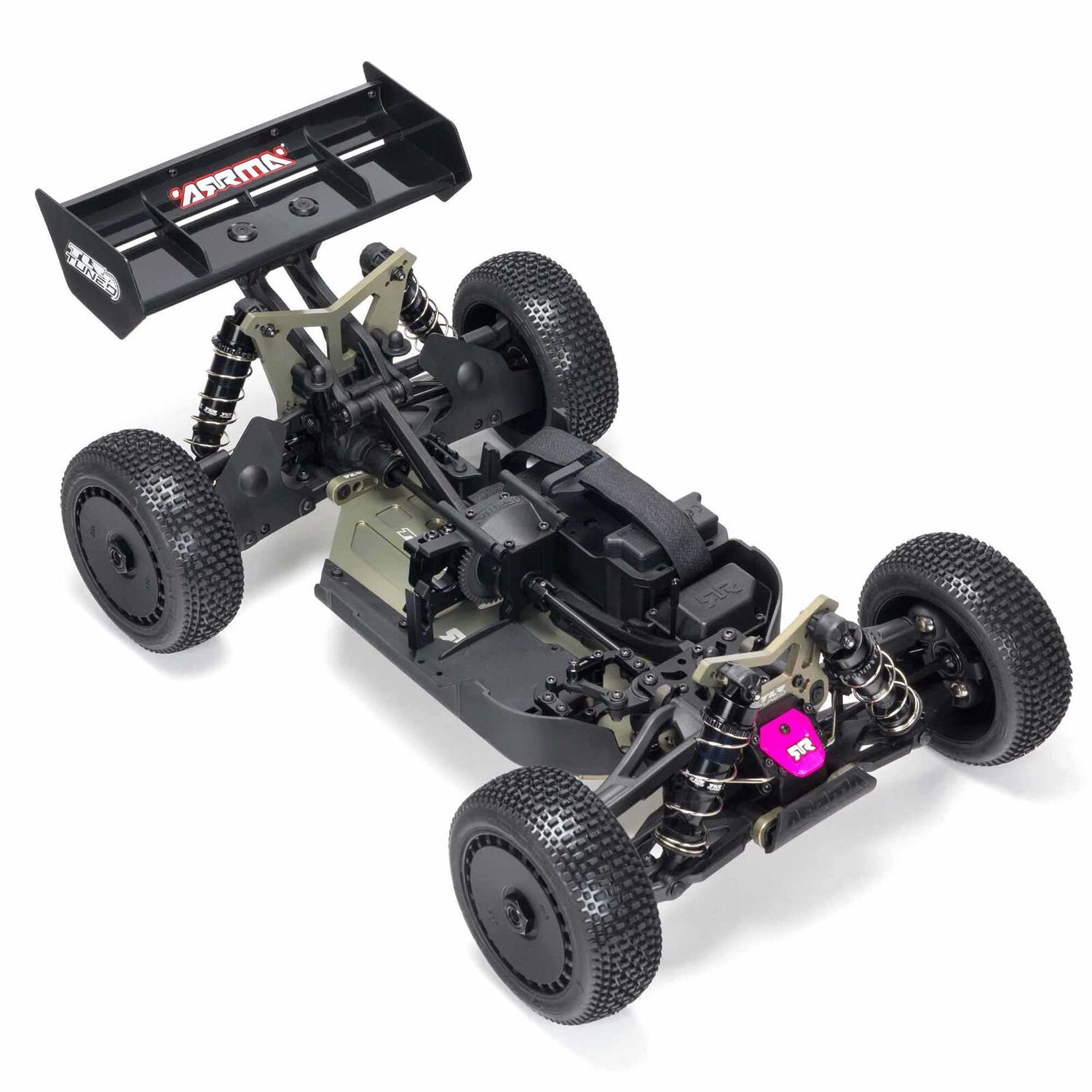

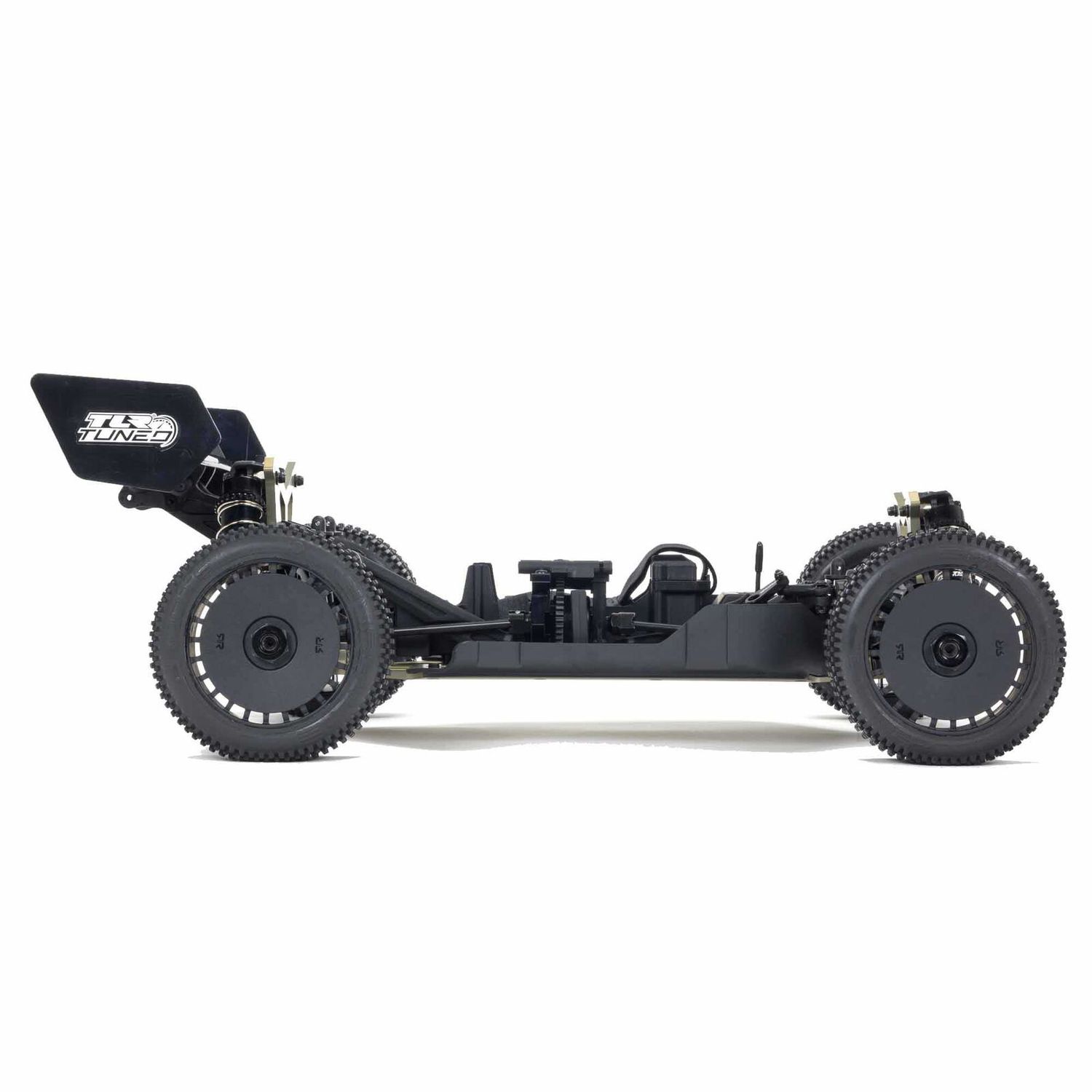

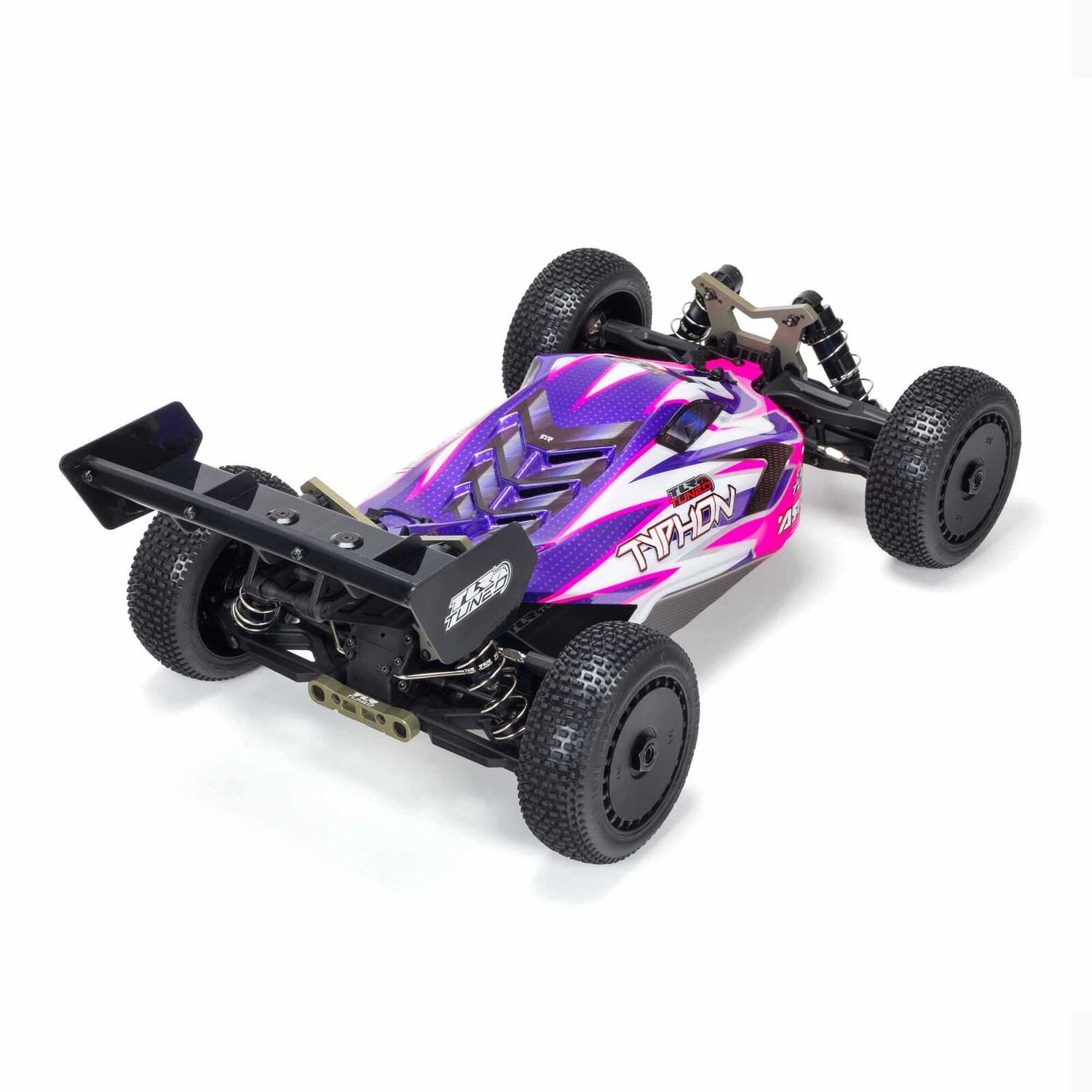

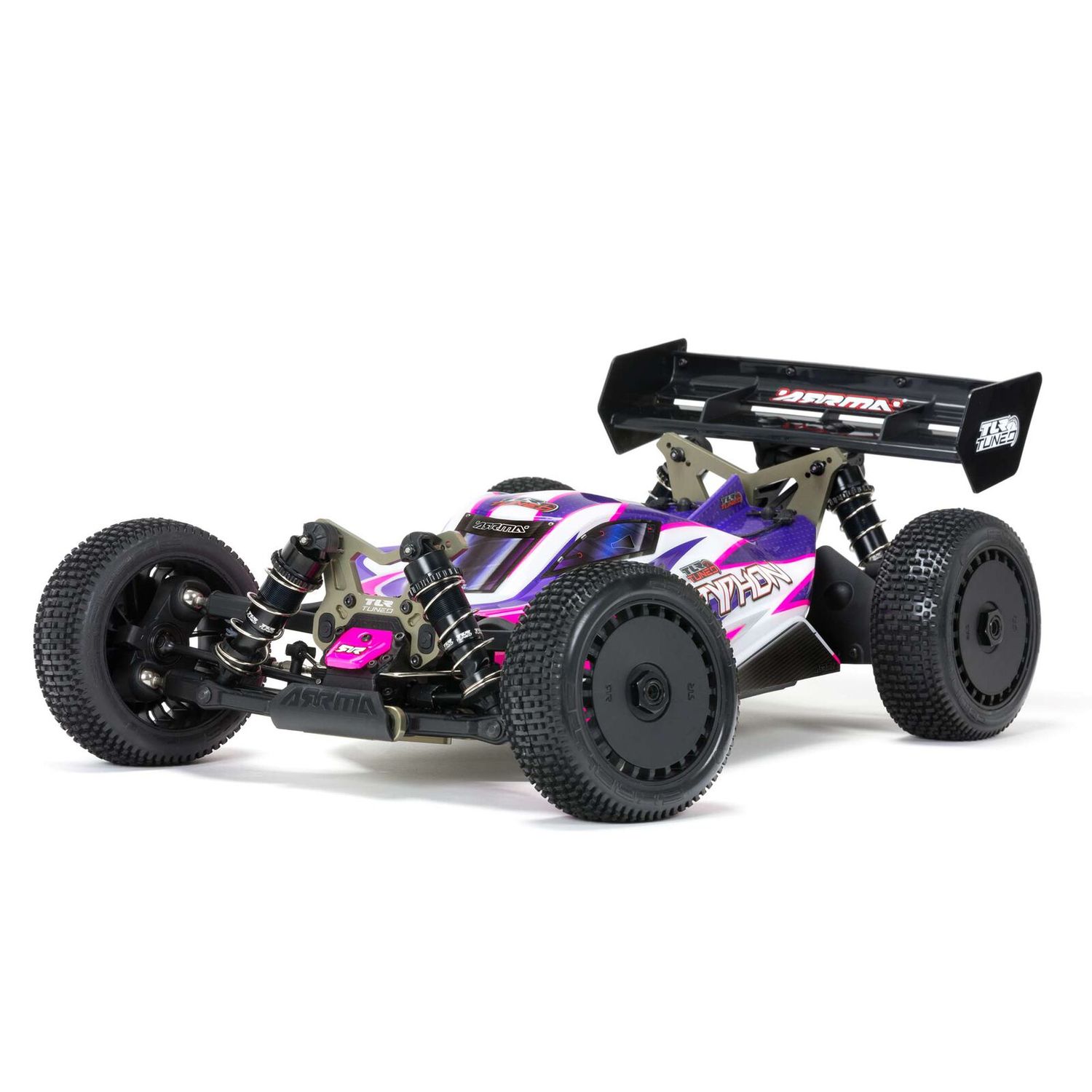

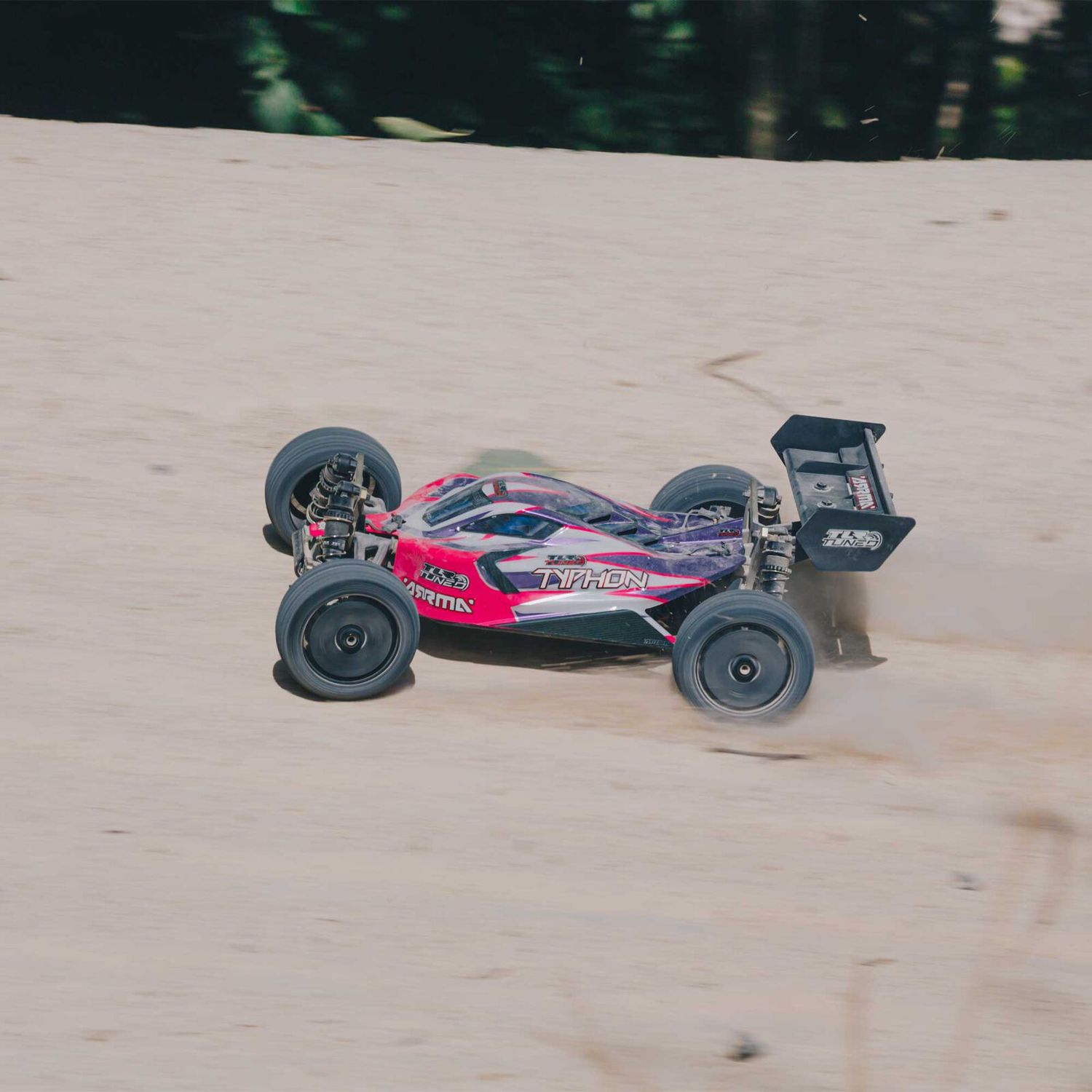

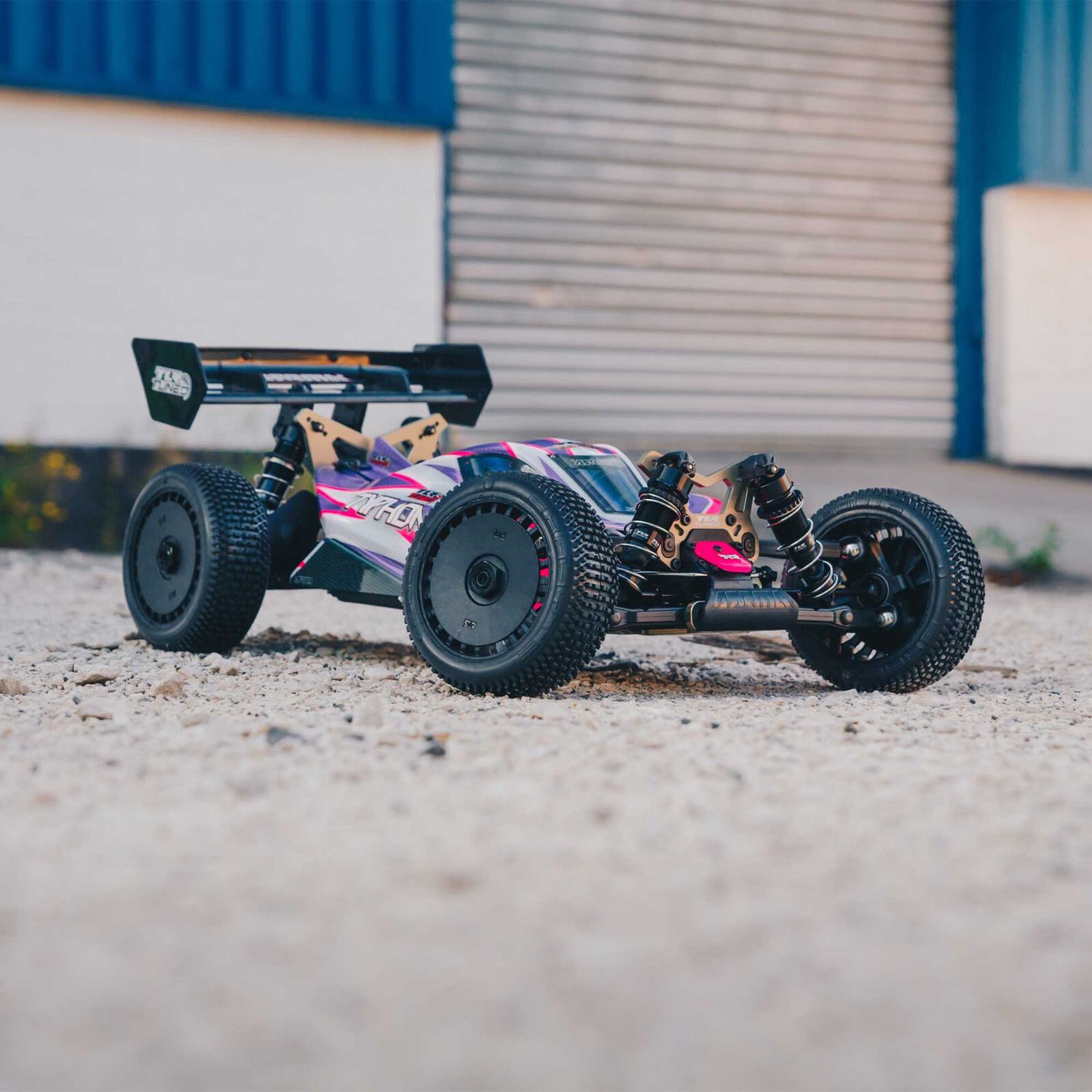

Loaded with high-end parts to improve durability and handling, the 1/8 scale TLR® Tuned TYPHON™ 4WD Race Buggy Roller gives bashers the perfect platform for stepping into the worlds of racing and chassis tuning. Just add your choice of electronics!

  In The Box

   - (1) ARRMA® TLR® Tuned TYPHON™ 1/8 Race Buggy 4WD Roller

   - (1) 1/8 TLR Tuned TYPHON 4WD Roller Manual




  Needed to Complete

   - (1) 2+ Channel Transmitter and Receiver

   - (1) Metal Gear, Hi-Torque Steering Servo

   - (1) Electronic Speed Control

   - (1) Motor

   - (1) LiPo Battery

   - (1) Compatible LiPo Battery Charger

   - (1) Pinion Gear







   - TLR-Tuned Parts

   - Race Spec Finished Body

   - Durable 7075 T6 Aluminum chassis and shock towers

   - All-metal Diff Outdrives And Gearbox Internals

   - High-traction dBoots® Exabyte Tires






TLR® Tuned Features

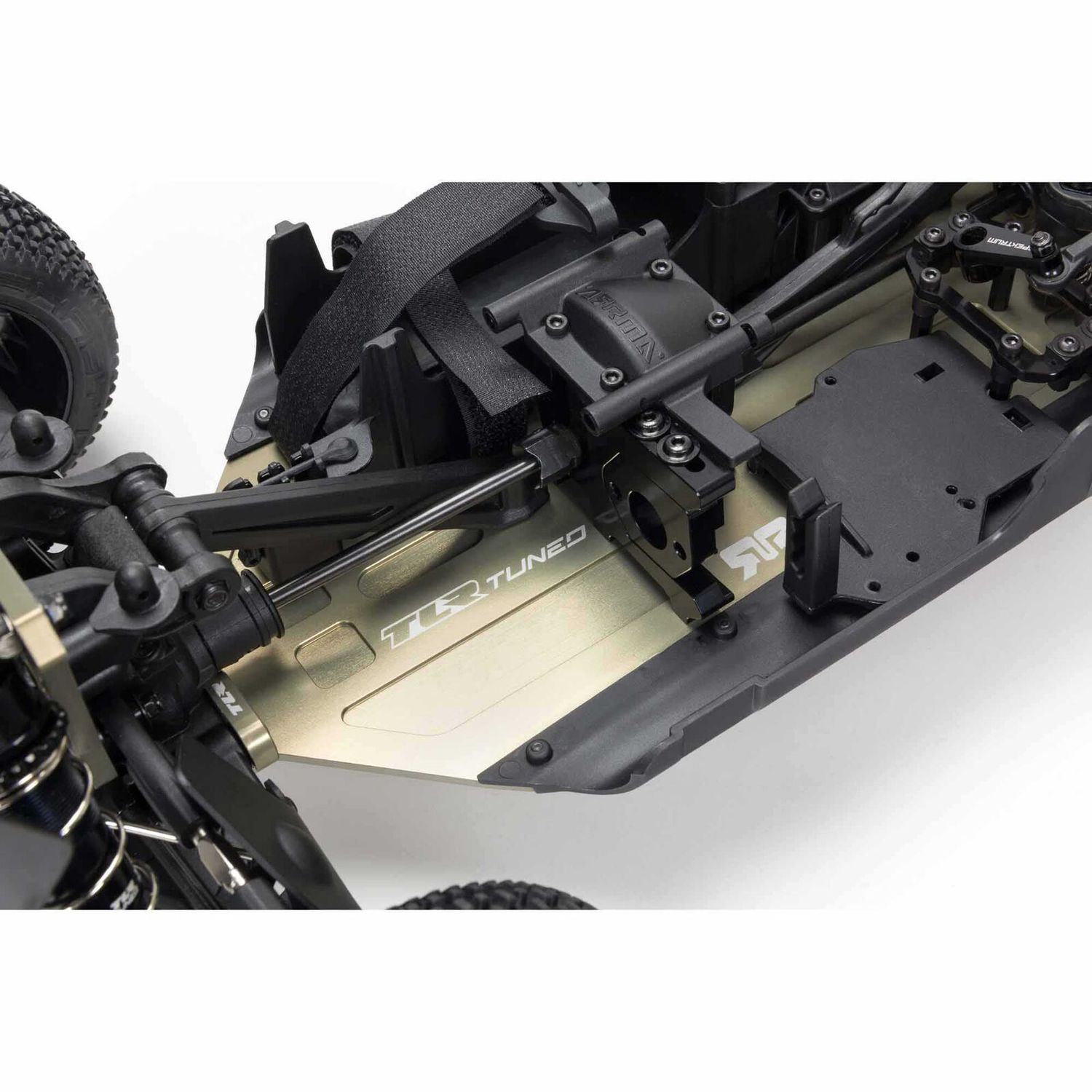

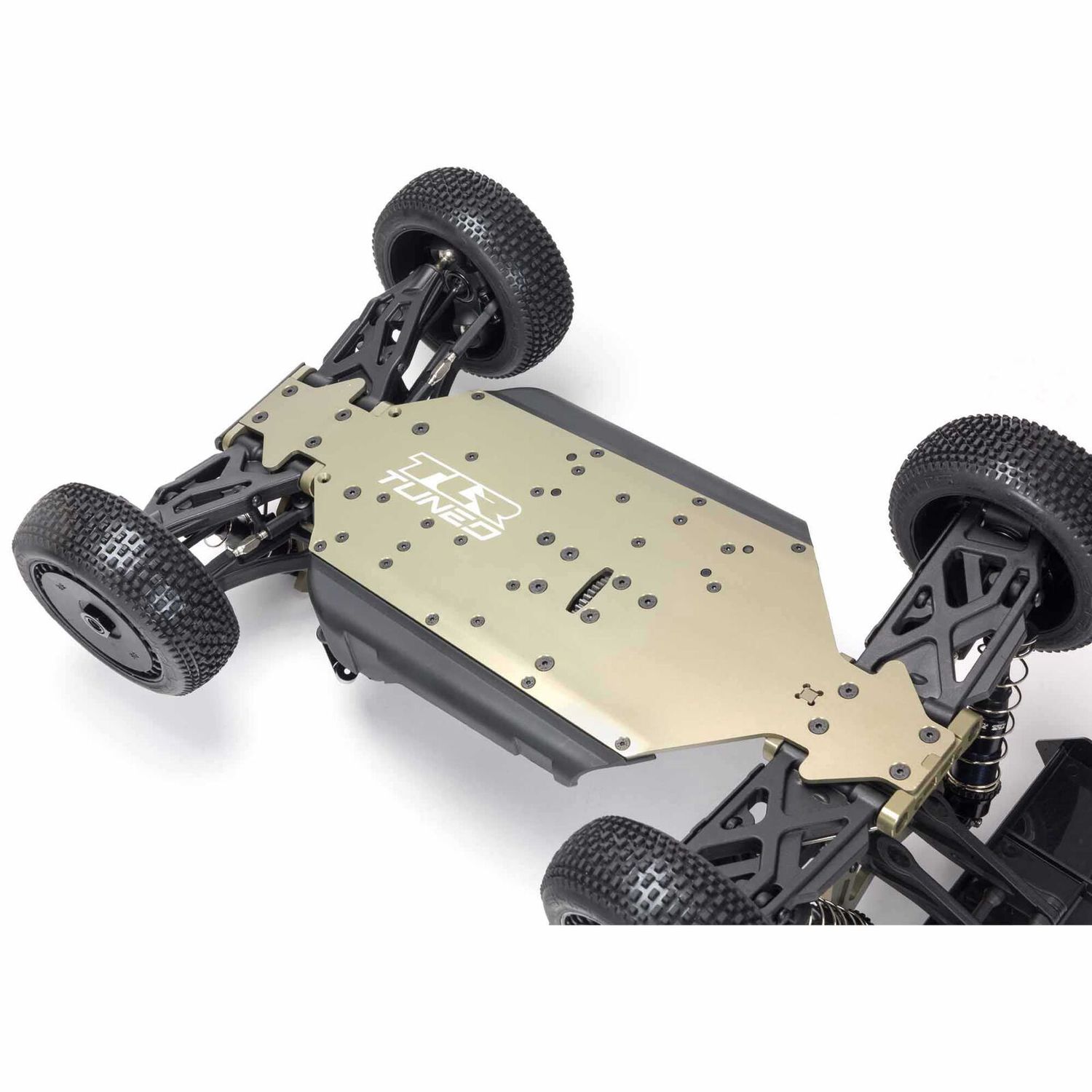

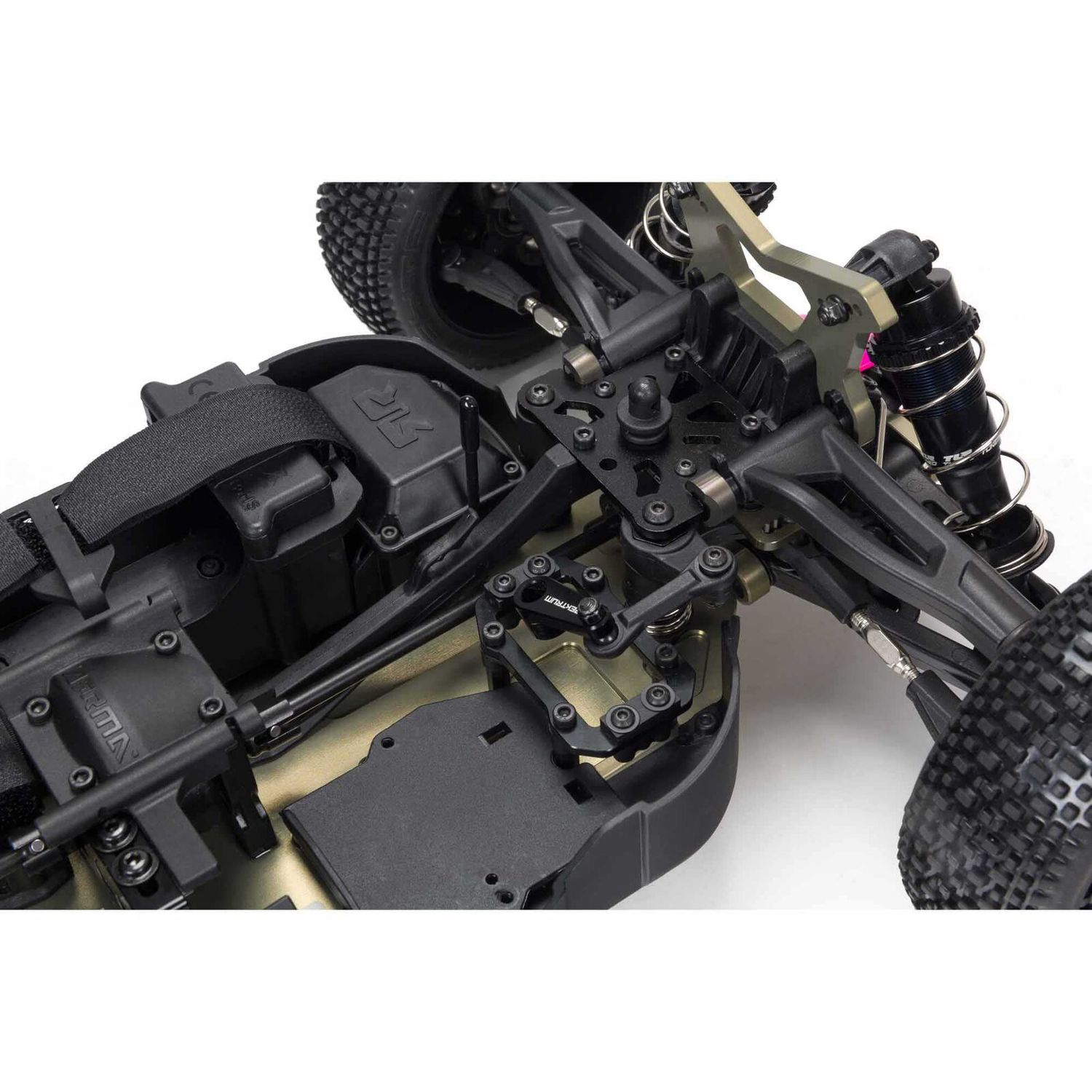

    - TLR® Tuned 7075-T6 Laser-Etched Aluminum Chassis Plate

    - TLR® Tuned 7075-T6 Laser-Etched Aluminum Front and Rear Shock Towers

    - TLR® Tuned 7075-T6 Laser-Etched Aluminum Steering Rack

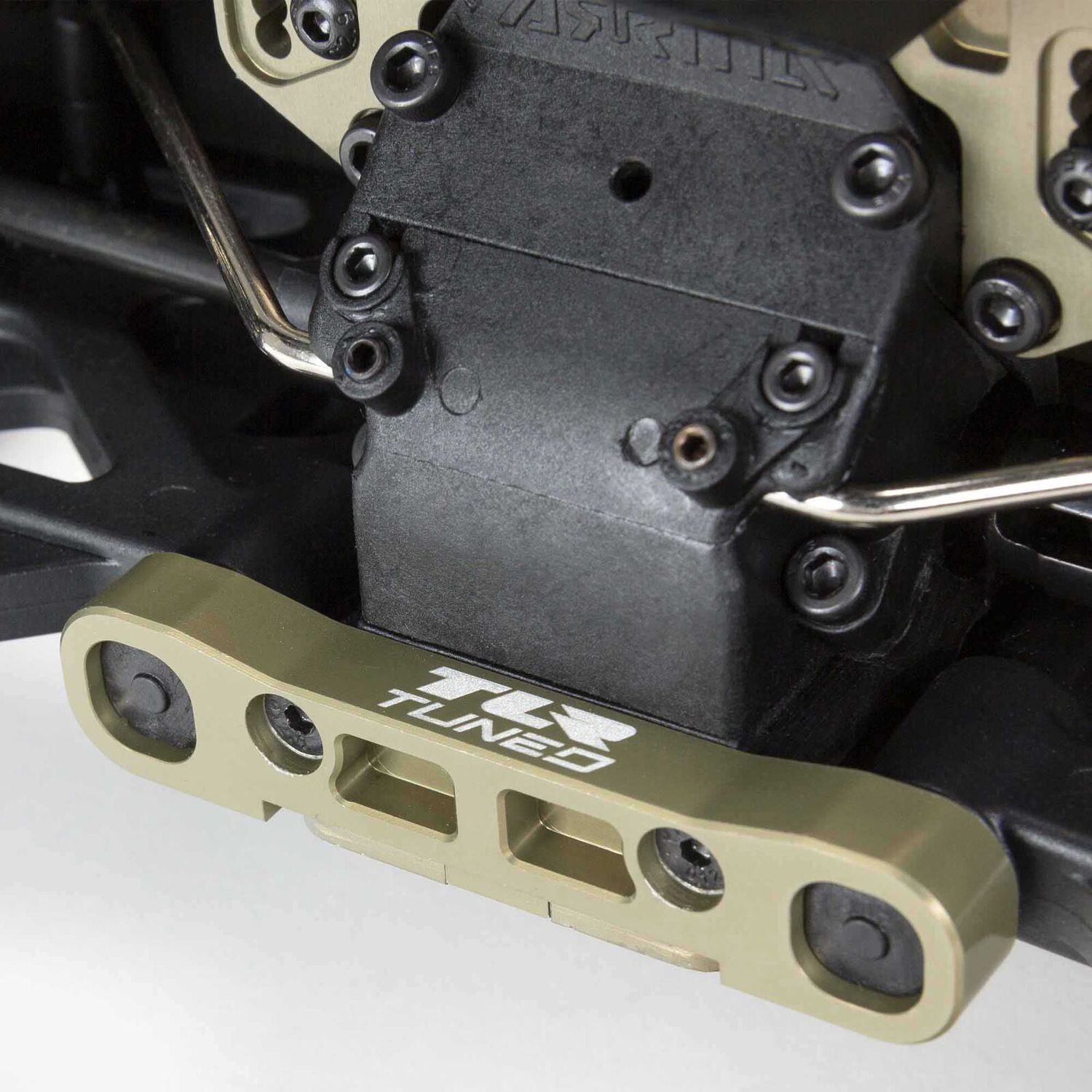

    - TLR® Tuned Laser-Etched Aluminum Lower Adjustable Suspension Hangers

    - TLR® Tuned Laser-Etched Aluminum Upper Adjustable Suspension Hangers

    - TLR® Tuned Laser-Etched Aluminum Shock Bodies






Features




    - Strong front and rear composite chassis braces

    - Strong composite chassis side pods

    - Rear suspension dirt guards

    - Oil-filled adjustable shocks

    - Machined tapered shock pistons

    - EXB Extreme Bash shock stand-offs

    - Heavy-duty drivetrain

    - All-metal diff outdrives and gearbox internals

    - Durable steel driveshafts throughout

    - Galvanized turnbuckles





    - X-Hard servo saver spring

    - Black anodized aluminum easy-access sliding motor mount

    - Black aluminum servo mount

    - Race Spec high rear wing mount

    - Race Spec tunable rear wing

    - Factory-finished Race Spec body colors and decals

    - dBoots® Exabyte race compound tires

    - Low-drag 1/8 buggy wheels

    - Aluminum 17mm wheel hex

    - 2-year warranty (see website support for details)

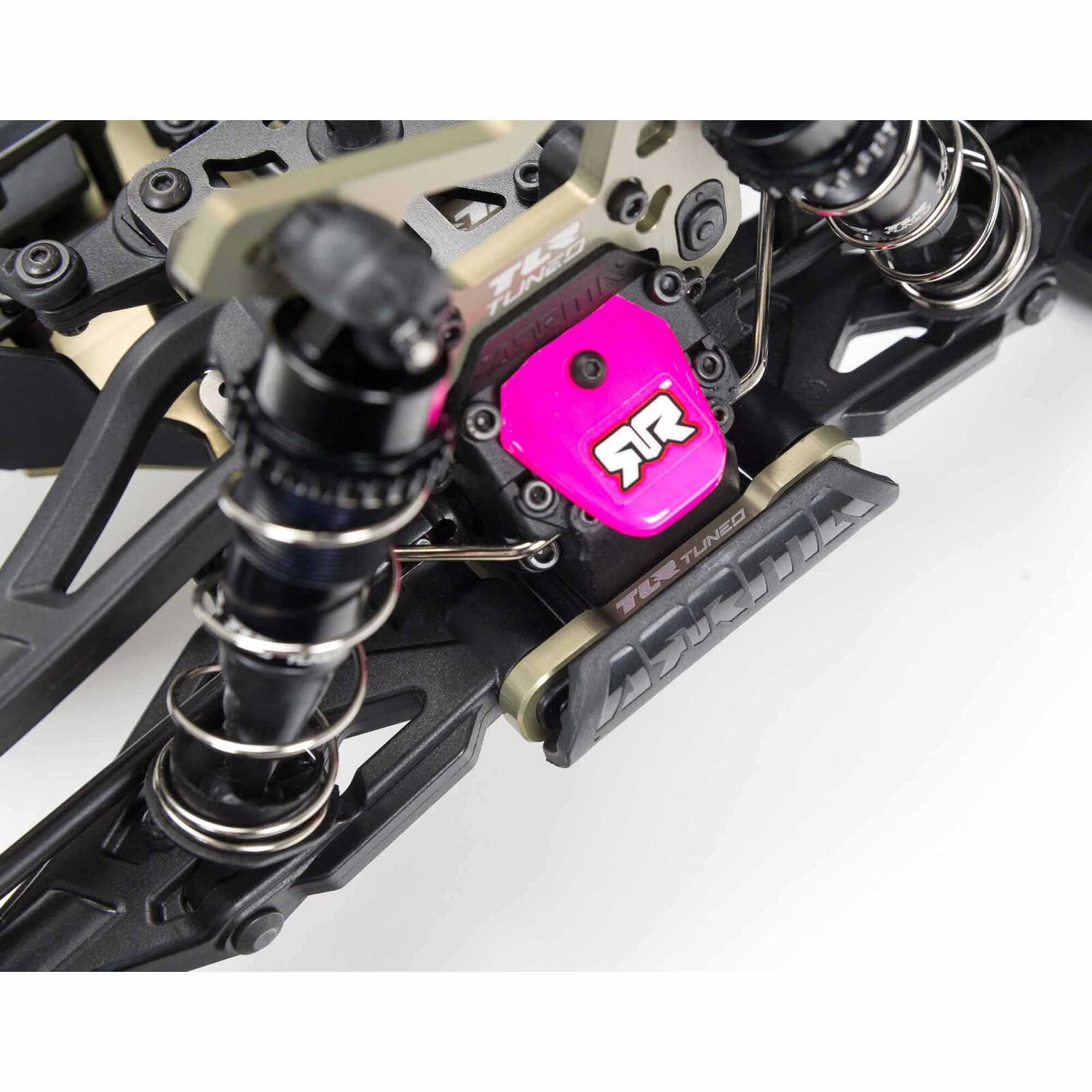

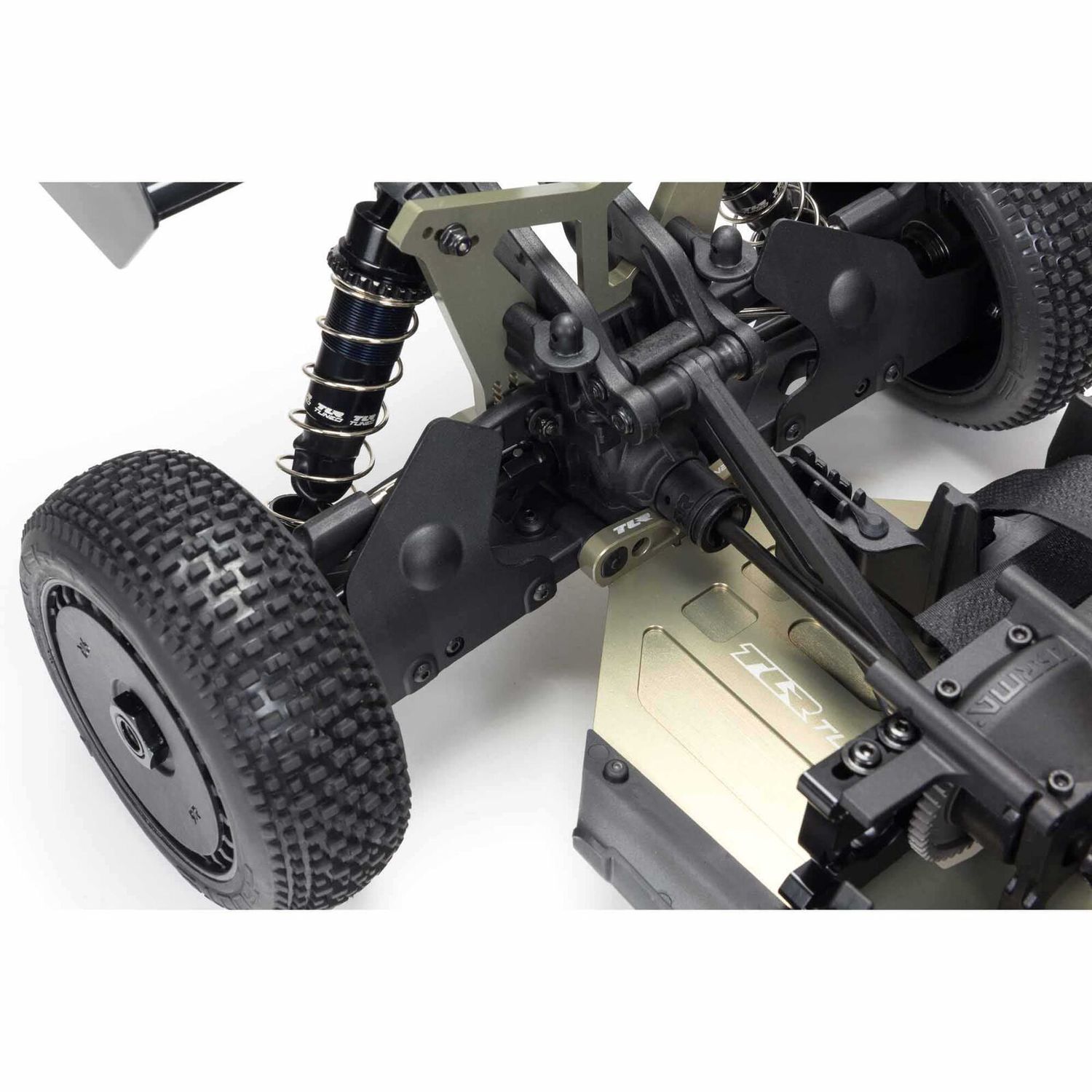

   TLR® TUNED PARTS
   The TLR® Tuned TYPHON™ 4WD Race Buggy Roller has been upgraded with high-end aluminum parts that increase durability and improve handling. For intermediate-level bashers, it's the perfect platform to use for racing and to gain experience with tuning — Designed Fast and Designed Tough!

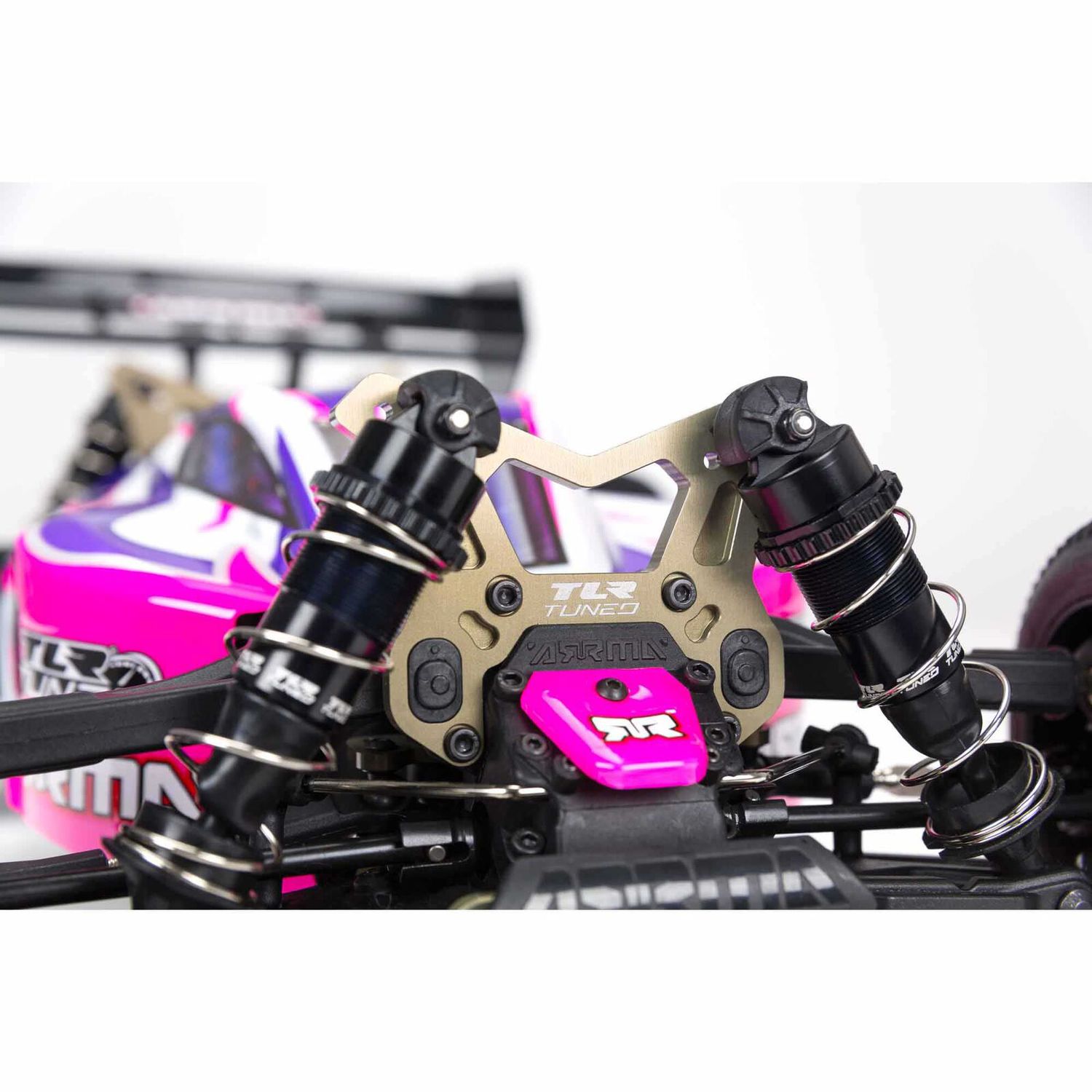

   OIL-FILLED SHOCKS
   The adjustable oil-filled shocks are mounted on TLR® Tuned 7075-T6 Aluminum Shock Towers and feature TLR® Tuned Aluminum Shock bodies, machined tapered shock pistons, and EXB Extreme Bash shock stand-offs. They easily soak-up bumps over dirt, asphalt, and grass for super-smooth damping.

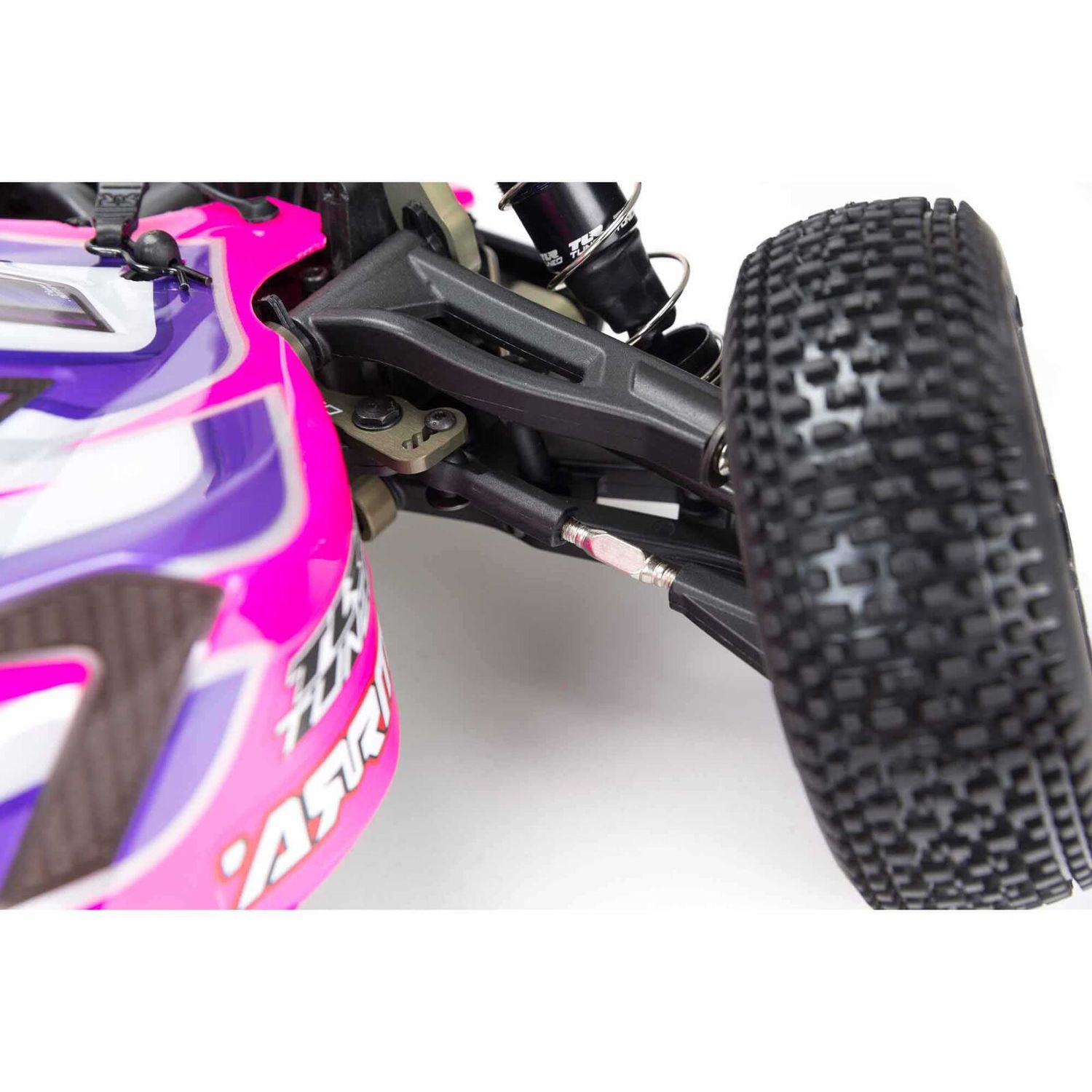

   HIGH-TRACTION dBoots® EXABYTE TIRES
   The dBoots® Exabyte tires are made of high-quality, race compound rubber for long-lasting durability and feature a multi-surface tread pattern for excellent traction in all conditions. They include foam inserts and are pre-glued to low-drag, 1/8 buggy nylon wheels. The 17mm hex fitting provides strength during extreme action and allows easy maintenance.

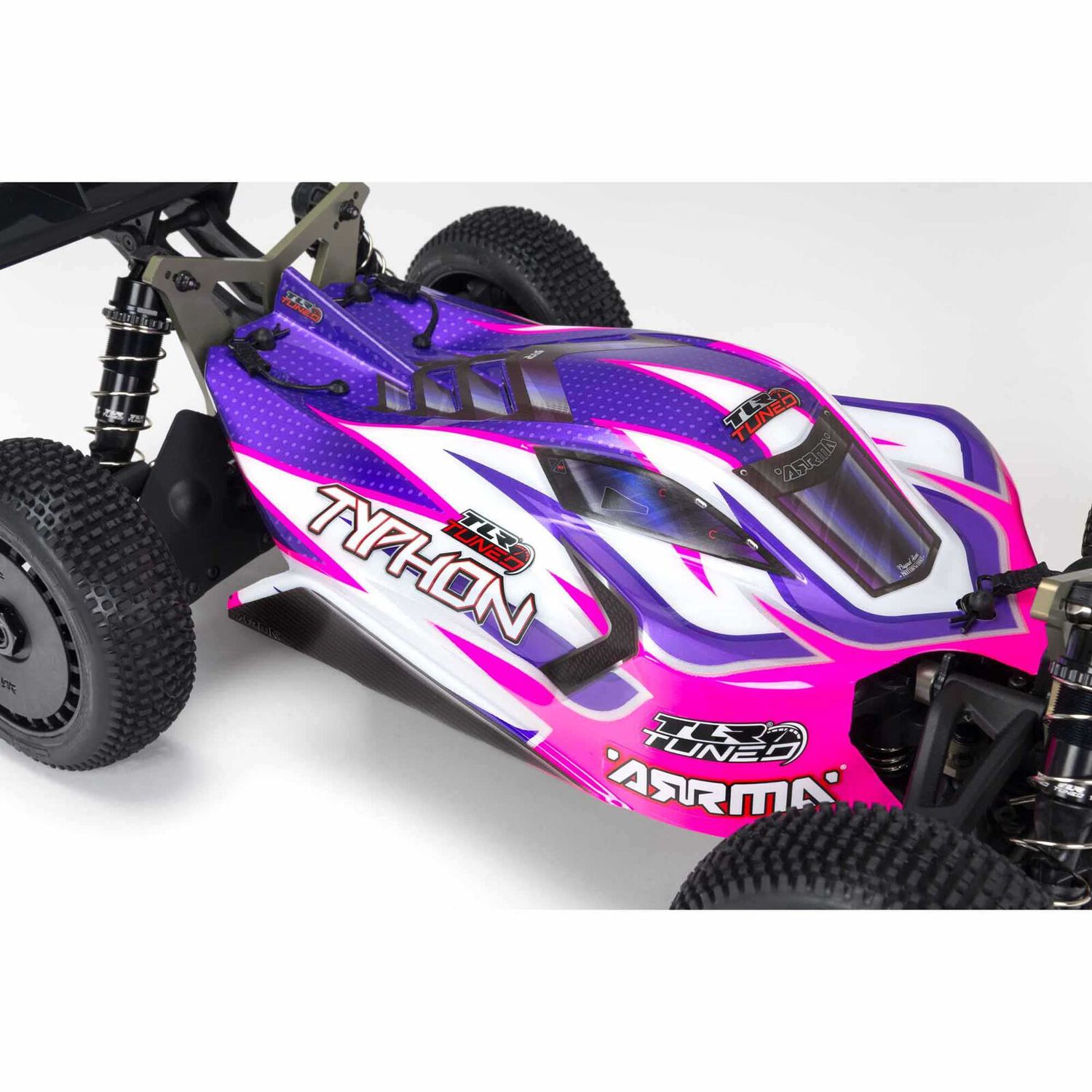

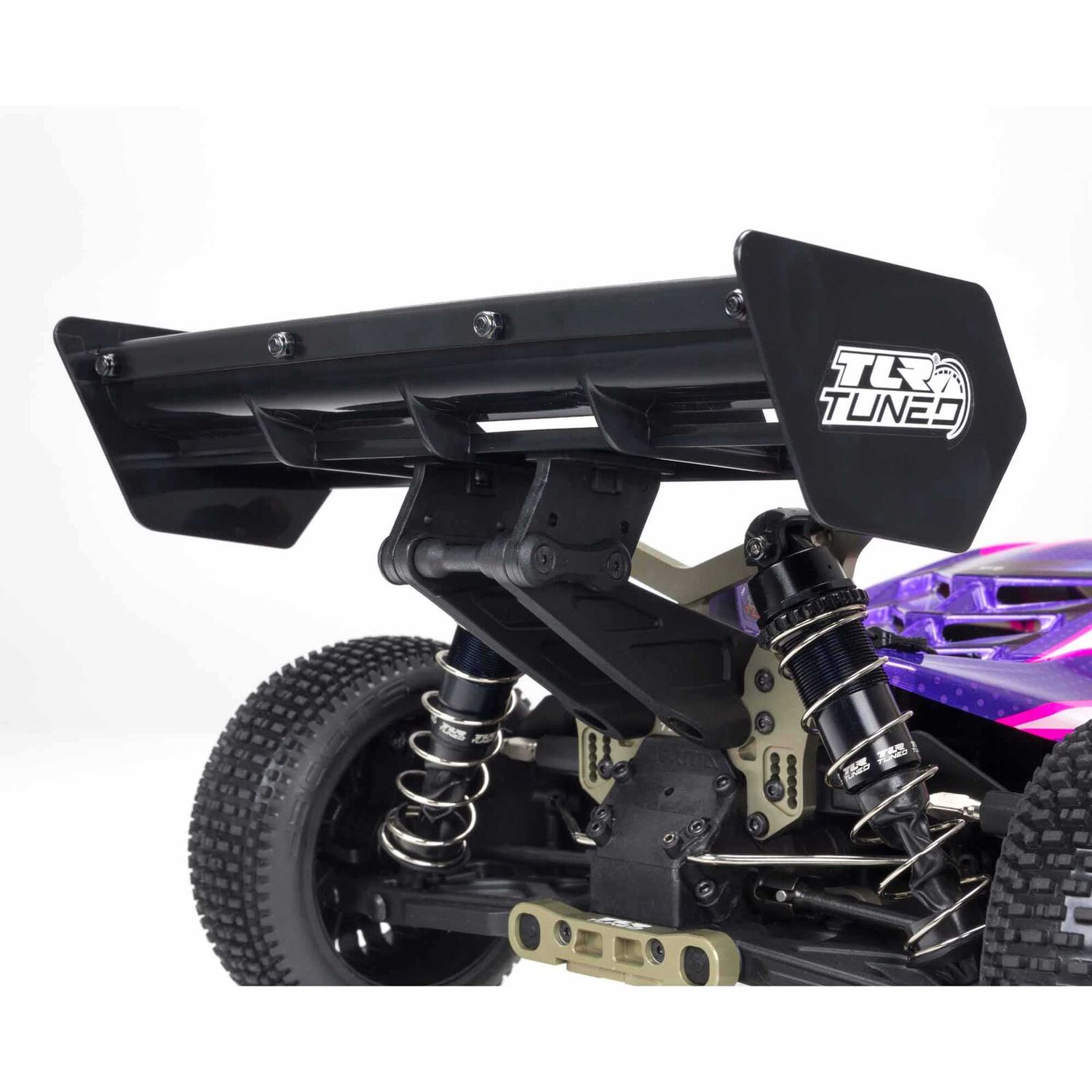

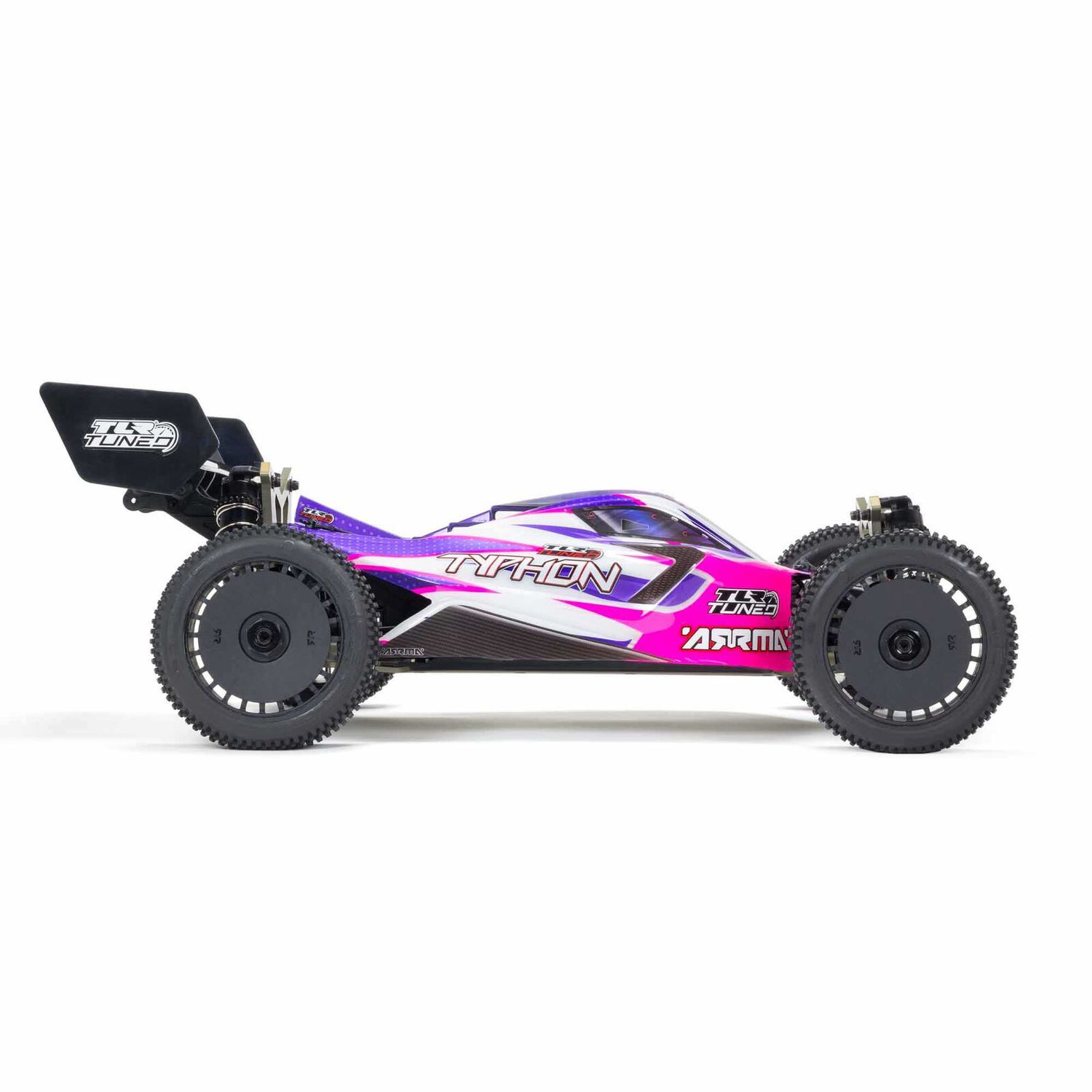

   RACE SPEC FINISHED BODY

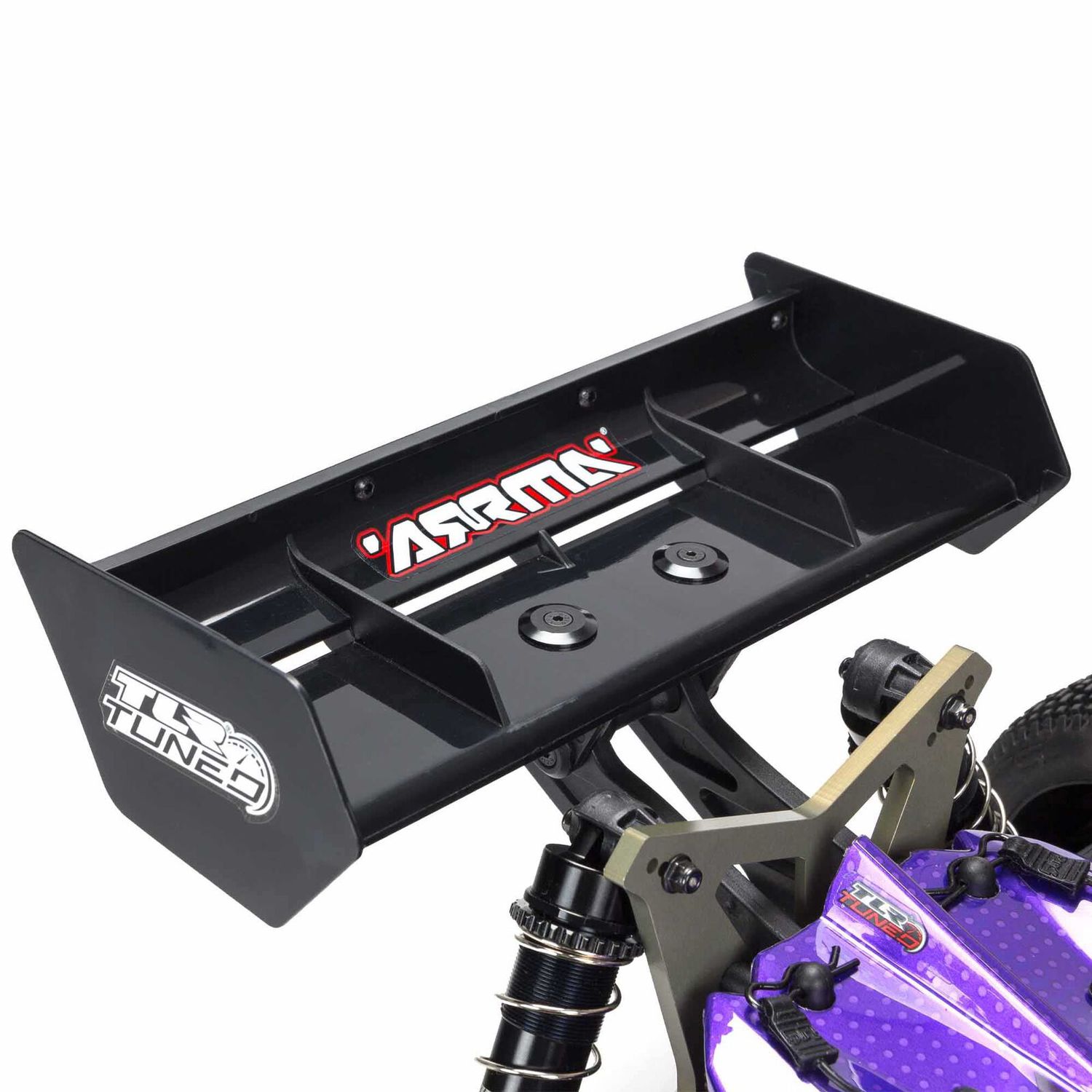

Topping off the TLR® Tuned TYPHON™ 4WD Race Buggy Roller is a sleek, factory-finished body featuring exclusive Race Spec colors and decals. A low-drag, tunable rear wing helps keep the buggy grounded, contributing to confident control and responsive handling at thrilling high speeds.
Product Specs




     Approximate Assembly Time


     1-3 Hours


     Ball Bearings


     Rubber shielded bearings throughout


     Battery


     Sold Separately


     Body


     Painted and trimmed, decals included


     Charger


     Sold Separately


     Chassis


     3mm Plate, 7075-T6 Aluminum


     Completion Level


     Roller


     Differential


     3 Gear Diffs


     Drivetrain


     4WD


     Gear Pitch


     1.0MOD


     Internal Gear Ratio


     3.3


     LiPo Compatibility


     4S, 6S


     Power System


     Roller


     Power Type


     Electric


     Product Height


     7.44" (189 mm)


     Product Length


     20.27" (515 mm)


     Product Weight


     6.29 lb (2.86kg)






   Product Width


   12.28" (312 mm)


   Radio


   Sold Separately


   Receiver


   Sold Separately


   Scale


   1/8


   Servos


   Sold Separately


   Shock Type


   Oil-Filed, Coil-Over Springs


   Speed Control


   Sold Separately


   Spur Gear


   50T


   Suspension


   Independent


   Tire Compound


   Race Compound


   Tire Tread


   dBoots® Exabyte


   Top Speed


   70+


   Vehicle Size


   Standard


   Vehicle Type


   Buggy


   Wheel Hex Size


   17mm


   Wheel Width


   1.65 in (42mm)


   Wheelbase



12.91" (328 mm)
