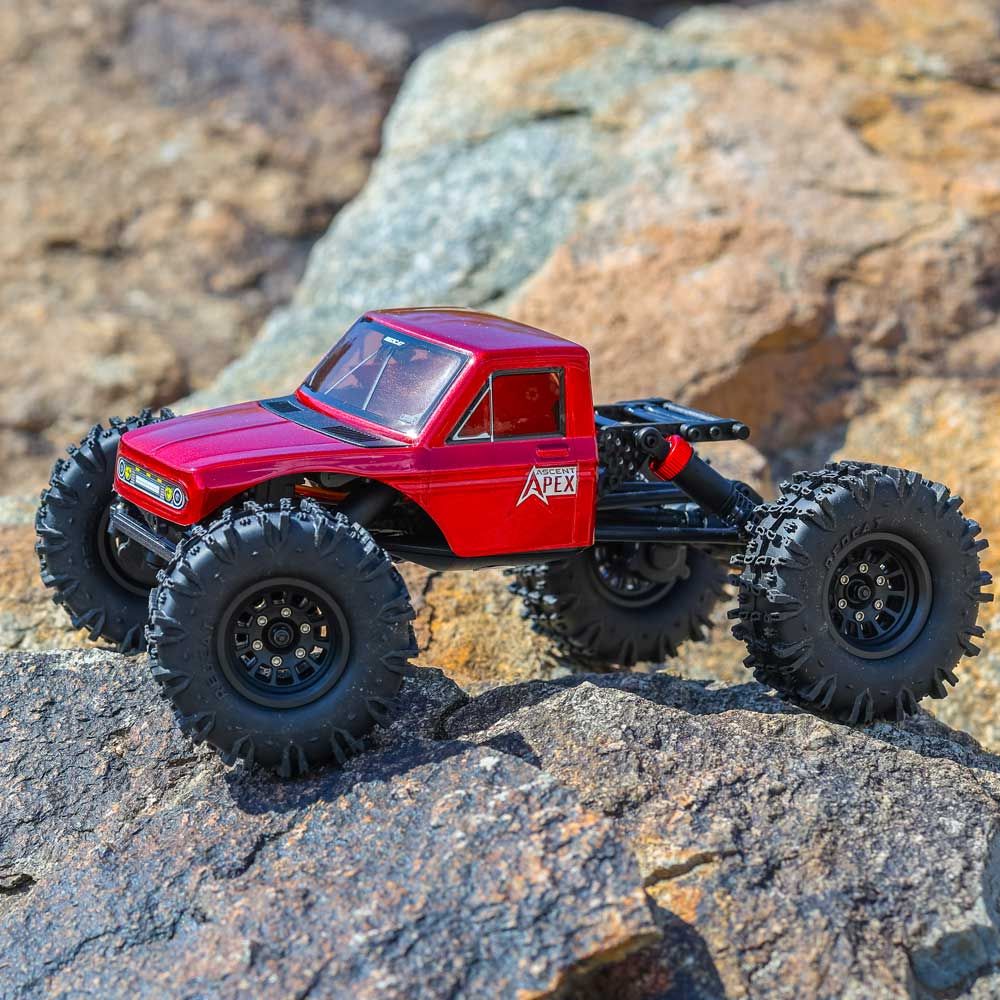

Redcat Ascent-18 APEX - 1/18 Scale Brushless Electric Rock Crawler, RED

SKU RER42219
$249.99
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it

Redcat Ascent-18 APEX - 1/18 Scale Brushless Electric Rock Crawler, RED

Product Details
Brand: Redcat Racing

The Redcat Ascent-18 APEX, a high-performance 1/18 scale brushless rock crawler built for serious RC enthusiasts who crave precision and power in a compact form. Building on the success of the original Ascent-18, the APEX features over 80% of its platform reimagined to deliver next-level crawling capability. At its core is a carbon fiber low center of gravity (LCG) chassis, engineered for exceptional strength and stability across technical terrain. The newly designed WIDE HS portal axles dramatically improve steering radius while increasing ground clearance, giving drivers the edge on steep and uneven surfaces.

Performance upgrades come standard, including overdrive gears, an optimized ring and pinion gear ratio, and strategically placed brass components such as the front outer portal boxes and differential cover to enhance traction and balance. Ball bearings throughout the drivetrain ensure smooth, efficient operation, while a 4kg metal gear micro servo provides precise control when navigating tough obstacles. Powering the APEX is a HobbyWing brushless motor system paired with a 3S 200mAh LiPo battery and a convenient USB charger—everything you need to hit the trails right out of the box.

The body arrives in a modular two-piece cab-only configuration, with an optional bed attachment for easy customization. The APEX combines rugged performance with refined styling. Aggressive high-grip crawler tires mounted on beadlock wheels give drivers the confidence to tackle challenging terrain with ease.

Like its predecessor, the Ascent-18 APEX is compatible with most Ascent-18 hop-up parts, allowing enthusiasts to expand and personalize performance even further. Whether you're upgrading your rig or diving into the world of micro crawlers for the first time, the APEX delivers a premium experience in a trail-ready package.

ASCENT-18 APEX BRUSHLESS ROCK CRAWLER

Built for hardcore crawling, with over 80% of the platform reimagined from the Ascent-18

EXCESSIVE ATTENTION TO THE DETAILS

Carbon fiber chassis - Motor-forward configuration - Angled skidplate

BRASS UPGRADES

Front brass outer portal boxes & fron brass diff covers for enhanced weight bias

WIDE PORTAL AXLES

UPGRADED DRIVELINE COMPONENTS

SMALL PACKAGE BIG PERFORMANCE

Build for fun - Built to perform - Built to last

HOBBYWING MINI 24 BRUSHLESS POWER SYSTEM

20A 2-3S LiPo - 6V/8.4V adjustable BEC - 3500KV 1621 motor

HIGH GRIP TIRES ON BEADLOCK WHEELS

1.3 inch 3-piece beadlock wheels held together with 6 stainless steel screws. Soft compound tires with high grip tread design

PERFORMANCE TUNED SHOCKS

Aluminum capped oil filled coilover shocks

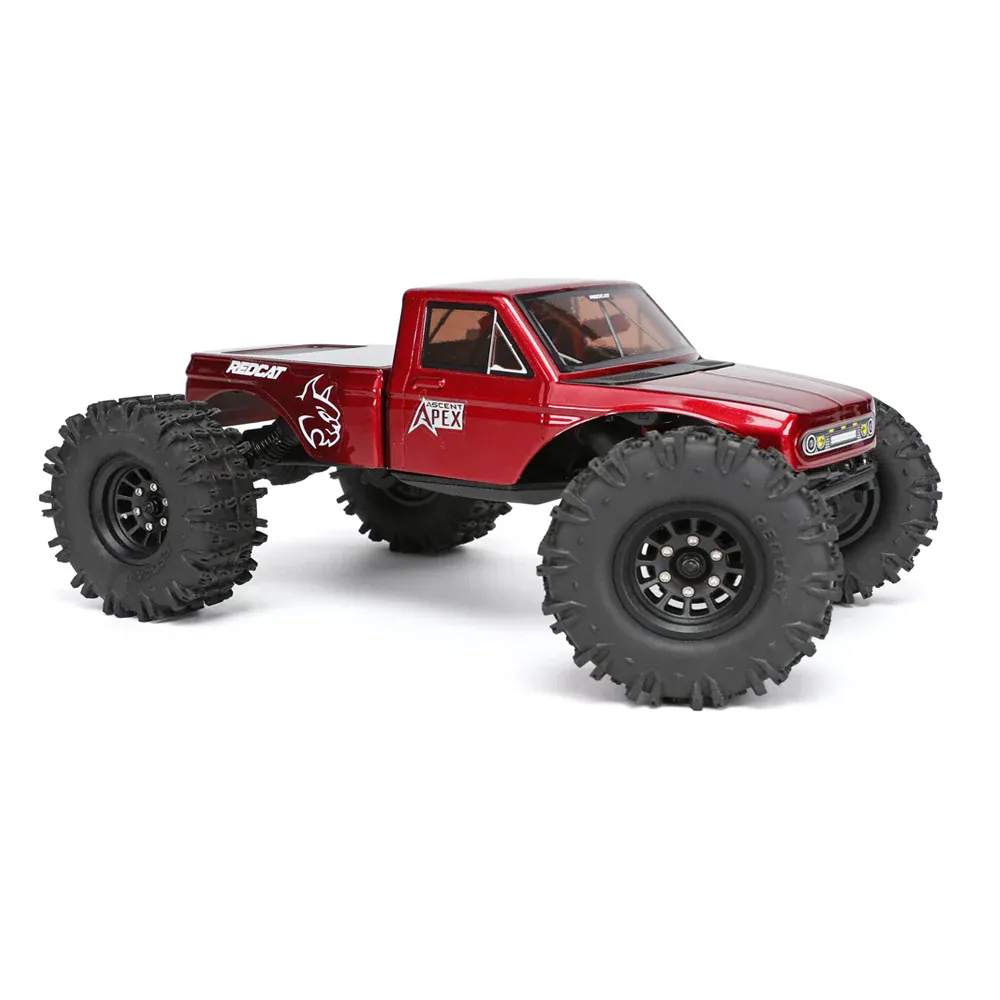

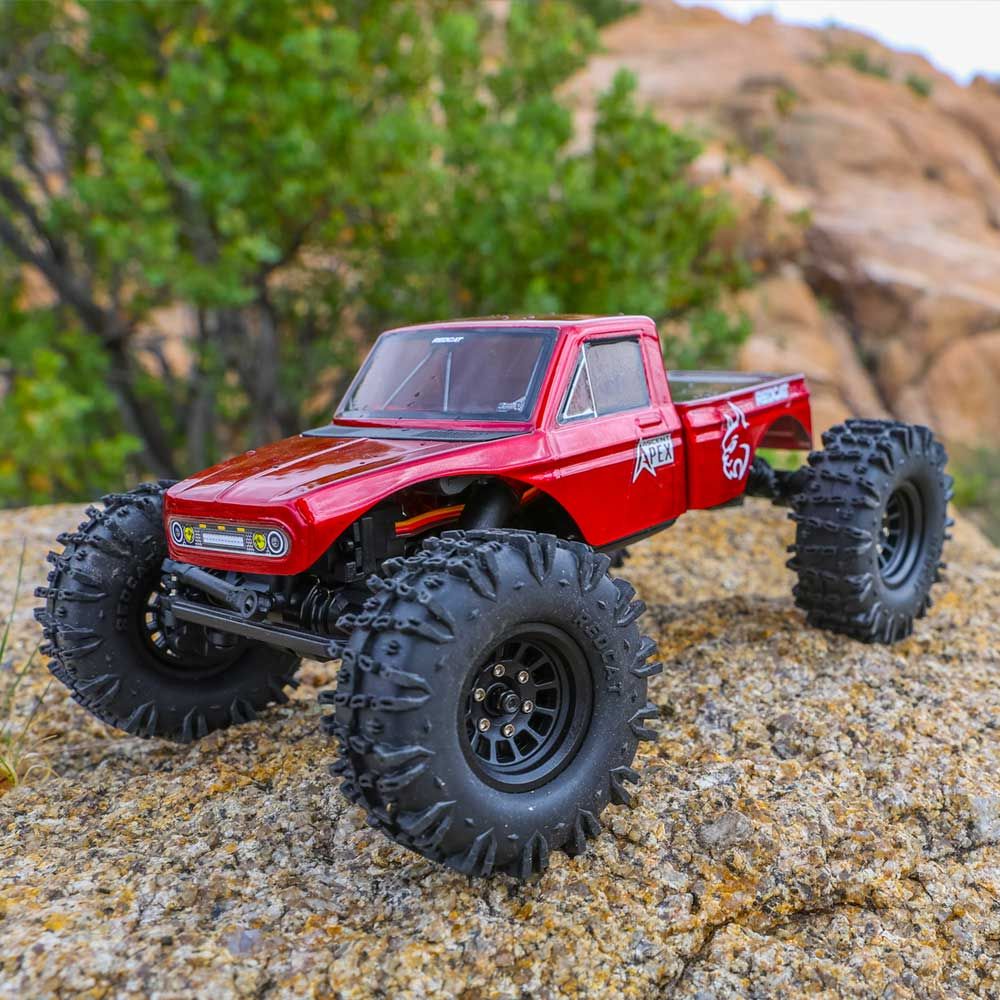

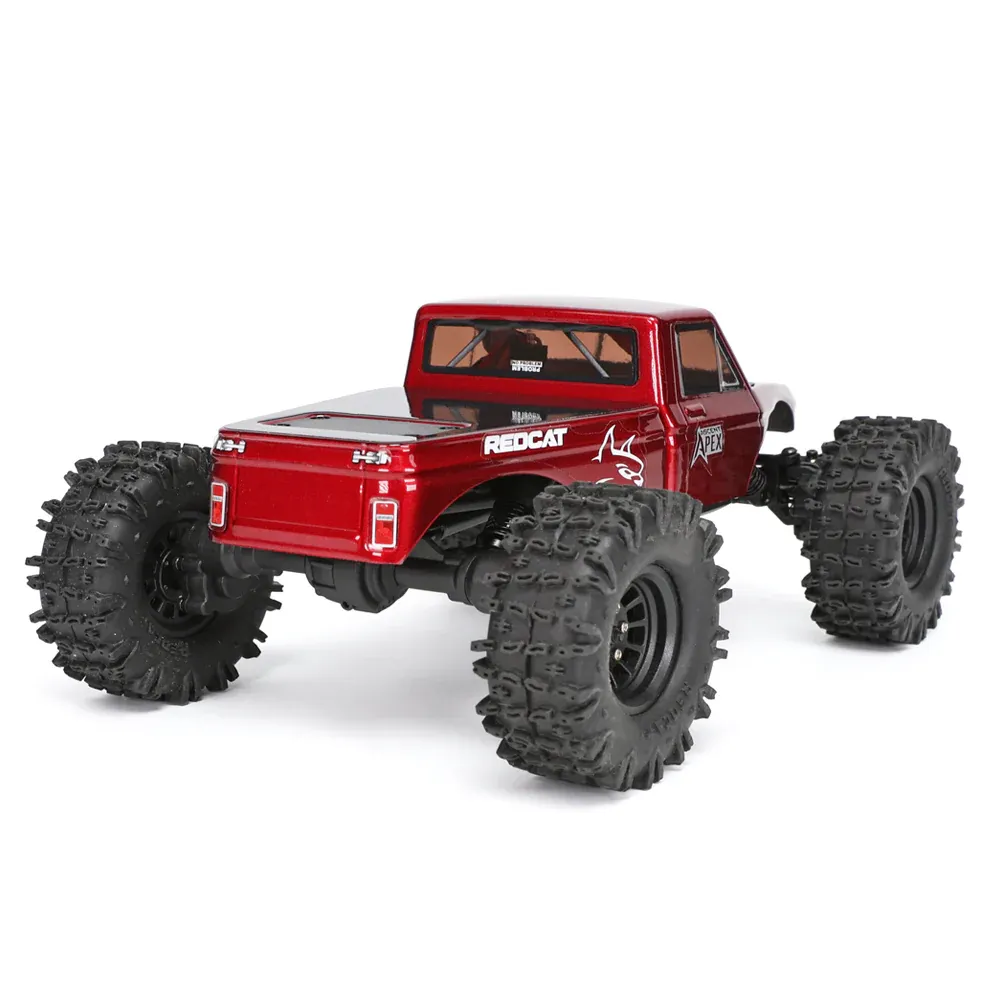

OPTIONAL BED INCLUDED

REDCAT RTX-4C

4 Channel radio system with adjustable EPA on all channels

COMPLETE LINE OF UPGRADES AVAILABLE

Take the Ascent-18 APEX to the next level with our brass and aluminum performance upgrades

Vehicle Scale

1:18

Transmission

Forward & Reverse

Drive System

4 Wheel Drive

Length

222mm

Width

143mm

Height

98mm

Servo Type

4kg Metal Gear Waterproof Servo

Wheelbase

156mm

Ground Clearance

38mm

Chassis Type

2mm Flat Carbon Fiber

Wheel Width

15.5mm

Wheel Diameter

1.3" or 30.33mm

Suspension

Aluminum Capped Oil Filled Shocks

Speed Control Type

Hobbywing WP-Mini24 RTR, 2-3S LiPo, 6V/8.4V 1.5Amp BEC

Radio System

2.4GHz Radio System

Battery

3S / 11.4V 200mAh with USB charger

Needed to Run

4AA Batteries for Radio
