Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo w/Venom Motor (3450kV) & FlySky Receiver
Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo w/Venom Motor (3450kV) & FlySky Receiver
+2

Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo w/Venom Motor (3450kV) & FlySky Receiver

SKU FUR-2525
$99.99
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it

Furitek Redcat Ascent-18 Starter 2S Brushless ESC Combo w/Venom Motor (3450kV) & FlySky Receiver

Product Details
Brand: Furitek

Combo Overview:

The Furitek Lizard Pro 30A Micro element resistant ESC is a Powerful ESC that delivers huge performance to small scale rock crawlers. Boasting a 30 amp continuous rating, adjustable 5A BEC, up to 3S LiPo support, and built-in wireless module programming capability! This ESC supports both brushed and brushless motors and uses FOC technology to give you a buttery smooth performance on the trail. The Furitek Venom 1212 3450kV 12-Pole hi-torque brushless Outrunner motor is designed to provide a buttery smooth feel at low and high RPM with incredibly high torque that will turn your Ascent-18 into a crawling performance weapon! Designed to be a plug-and-play option for Ascent-18 rock crawlers, this combo is an excellent upgrade if you are looking to bring your Ascent-18 to the next level of high performance!

Features:

  • Lizard Pro ESC
    • Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
    • FOC (Field-oriented control) technology
    • Compatible with stock battery
    • Built-in wireless
    • Built-in switchable BEC
    • Built-in switch power
    • Super easy programming via App on both Android and IOS
    • Lifetime free firmware updates
    • Compact and lightweight
    • Real-time telemetry up to 10Hz
  • Venom Motor
    • 12-Pole Outrunner design
    • Super thin (0.2mm) stator laminations
    • Precision balanced rotor, smoothness for best reliability and maximum RPM.
    • Quiet and compact without sacrificing performance
    • Extreme quality high temperature copper windings
    • High strength steel pinion gear

Specifications:

  • ESC:
  • Input Voltage: 2S-3S LiPo
  • Waterproof: No
  • BEC: 5V-6.5V Switchable
  • Current:
    • Continuous: 30A
    • Peak: 50A
  • Dimensions (LxW): 28x15.5mm
  • Weight: (3.5g)
  • Motor:
  • Motor Type: Outrunner
  • KV: 3450kV
  • Pole: 12-Pole
  • LiPo: 2S
  • Power: 120W
  • Resistance: 0.16 Ohm
  • No Load Current(@10V): .07A
  • Size (Diameter x Length): 20x15.5mm
  • Weight: (17.5g)
  • Application: Micro Crawler

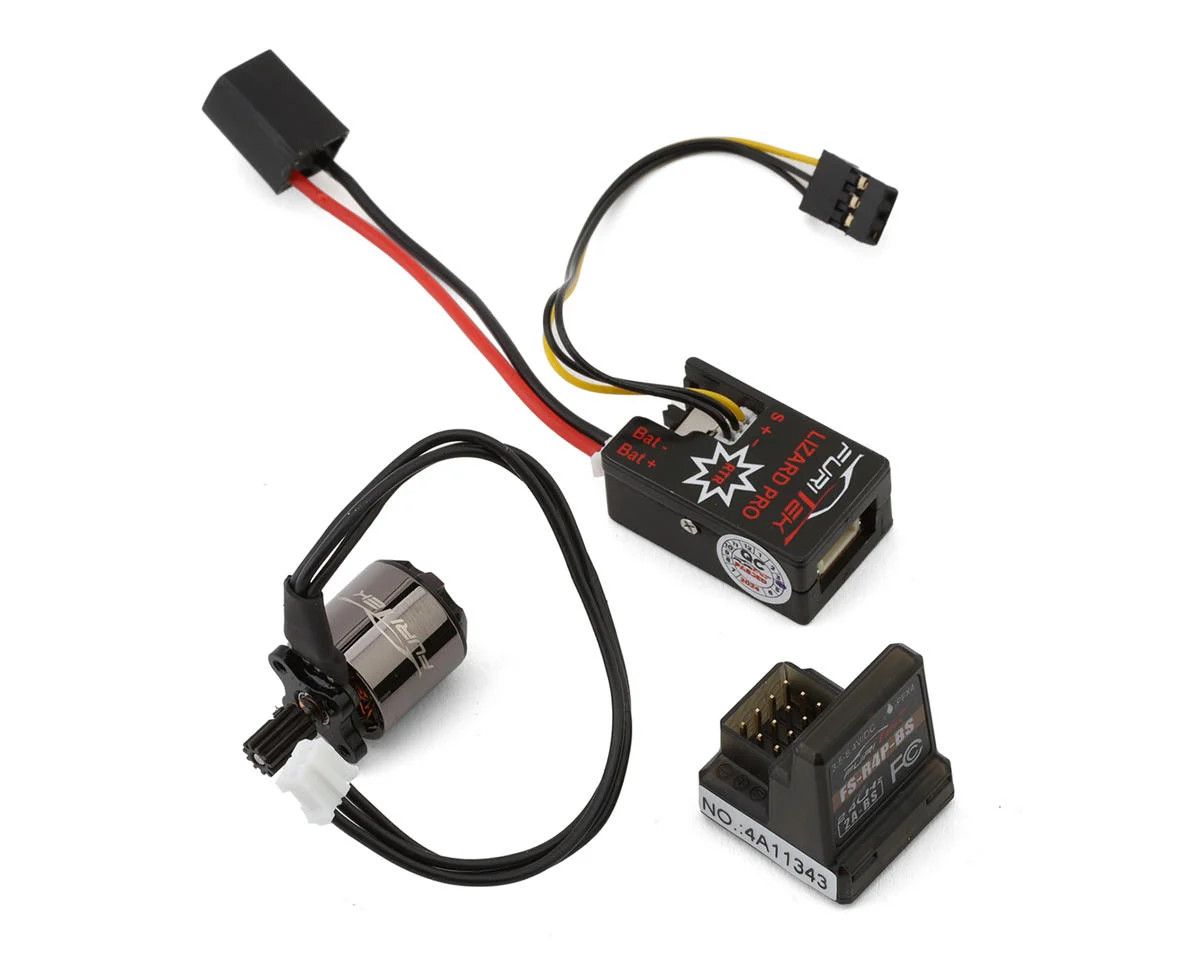

Includes:

  • (1) Lizard Pro 30A Brushless ESC
  • (1) Venom 1212 3450kV Brushless Motor
  • (1) FlySky 4-Channel Receiver Connector
