This is The Furitek Axial UTB18 Stinger Brushless Power System. This powerful brushless system is an excellent upgrade intended for the Axial UTB18 rock crawler. With its smaller size and lightweight, this powerful combo offers high torque and incredibly low speed control with a mix of high speed performance. The motor was designed for superb crawling control and uses the FOC technology from the Lizard Pro ESC to eliminate cogging and bring your Axial UTB18 Capra to the next level of performance. Included with this system is the Lizard Pro ESC with wireless module giving you incredible control, a plethora of adjustable features and a bulletproof design. With Furitek Furicar mobile phone app and wireless module, users can set up any parameters on the fly without touching the truck, creating seamless adjustments for your favorite settings.

NOTE:

• Only recommended for KOMODO 118 2500kv.
• This system is not compatible with stock Axial UTB18 Tx/RX, you need to have an external Radio and Receiver.

Features:

• Specially developed for the Axial UTB18
• Support Sensorless brushless DC and brushed DC motor (config via the app, default is brushless)
• FOC (Field-oriented control) technology
• Built-in wireless module inside
• Plug & Play designed
• 5V/ 6.5V 2A Built-in BEC (config via app)
• Support 2S-3S LiPo battery
• Small size and lightweight
• Super easy programming via App on both Android and IOS
• Real-time telemetry up to 10Hz

ESC Specifications:

• Input Voltage: 2S-3S lipo battery
• BEC: 5V or 6.5V 2A (Don’t need external BEC for big Servos)
• Constant current: 40A
• Burst current: 70A
• Wireless module: Built-in
• Waterproof: No
• Dimension: 1.0x0.6x0.3in (26x15.5x9mm)
• Weigh: 0.3oz (8.3g)

Motor Specifications:

• kV Rating: 2500kV
• Type: Brushless Outrunner
• Input Voltage: 2-4S
• Slot/Pole: 12 Slots / 14 Pole
• Max Current: 15A
• No-load Current(@10v): 0.5A
• Watt: 180W
• Weight: 0.3oz (8.3g)

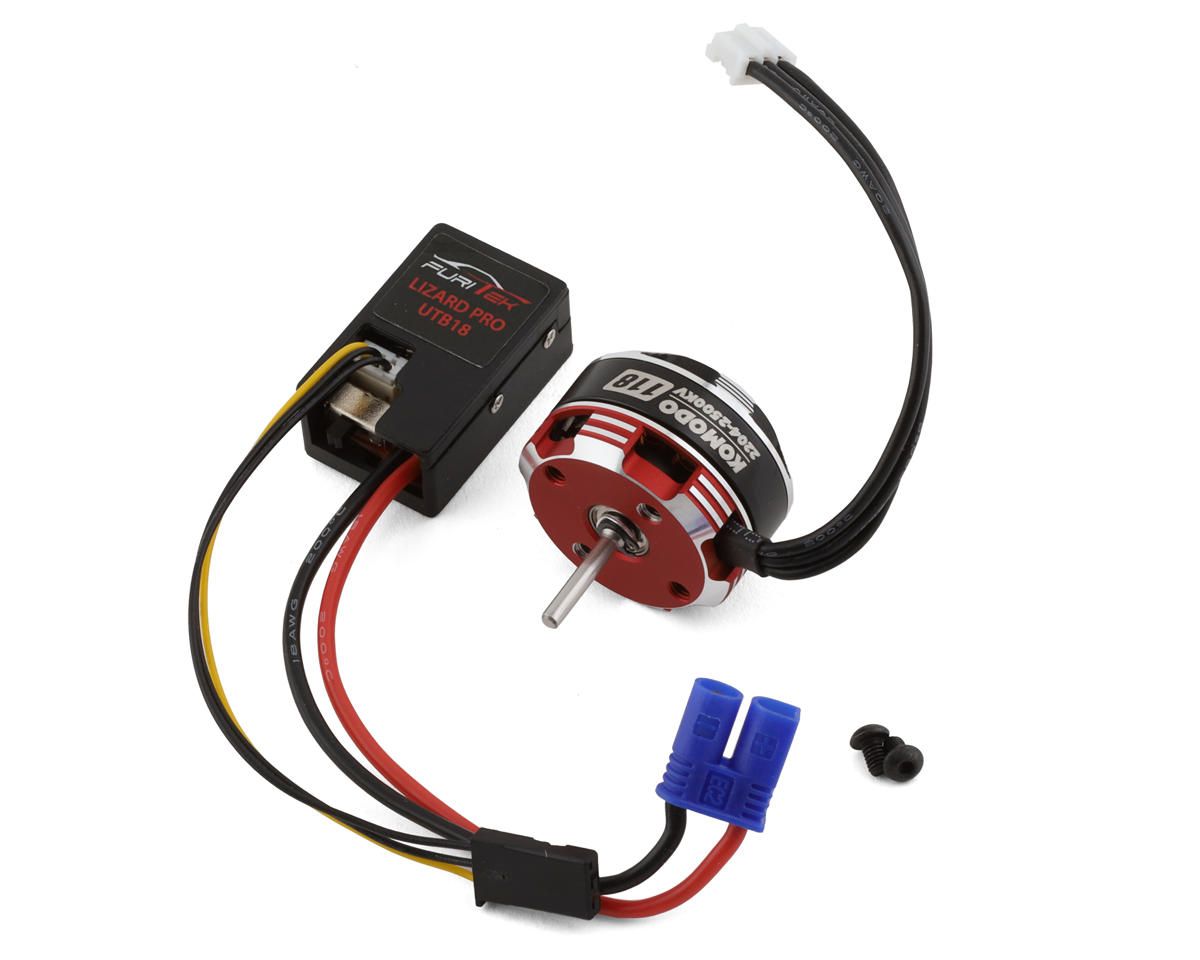

Includes:

• (1) 40A/70A Lizard Pro esc
• (1) Komodo 2204-2500kv brushless motor
