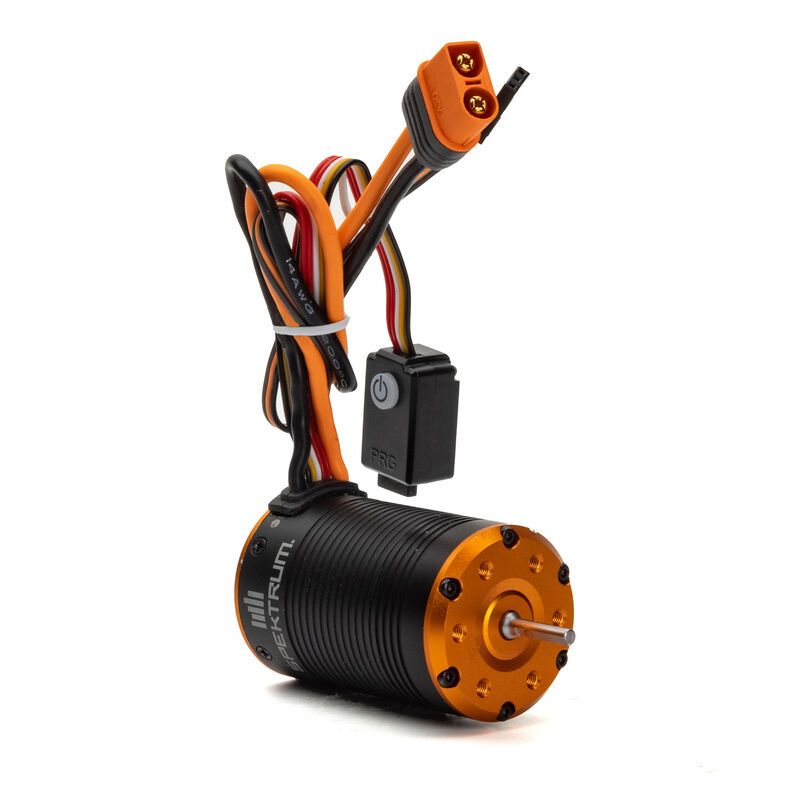

Firma 2 in 1 Brushless Crawler Motor/ESC: 1400Kv

Product Details
Brand: Spektrum

The Spektrum Firma Sensored 2-in-1 System is specifically engineered to be used with 10th scale Crawlers and Scalers. Featuring advanced Field-orientated Control (FOC) and professional drag brake performance and torque control.

In The Box
  • (1) Spektrum Firma Brushless Sensored 2-in-1 System 1400Kv
  • (1) Product Manual
Needed to Complete
  • Spektrum™ Surface Receiver
  • 2S or 3S LiPo Battery with EC3 or IC3 Connector
  • Spektrum Transmitter

Firma 2-in-1 Brushless Crawler Motor/ESC: 1400Kv

  • Pro-level Drag Brake performance and adjustability
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Integrated 40A / 160A ESC
  • Industry leading waterproof design

Multi-point Protection:

  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection

Features

  • Pro-level Drag Brake performance and adjustability
  • RPM/Throttle Matching enabled
  • FOC (Field-Oriented Control) equipped
  • Integrated 40-amp ESC (160amp burst)
  • 2-3S LiPo/6-9 Cell NiMH input voltage range
  • Industry Leading Waterproof Design
  • Fully programmable with optional Spektrum ESC Programmer Box (not included)
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC and Brushless Motor manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Adjustable high-power BEC (6V or 7.4V)
  • Firmware updatable through the Spektrum ESC Programming Box
  • High heat resistant IC3 connectors, backwards compatible with EC3 connectors
  • Limited 1-year warranty

Product Specs

Application
1/10 Rock Crawler
Auto Cutoff
Yes
BEC Voltage
6V/7.4V adjustable, continuous current 4A (Switch mode)
Connector Type
IC3
Forward
Yes
Input Voltage
2-3S Lipo, 6-9 Cells NiMH
Main Motor Type
Brushless
Maximum Burst Current
160A
Maximum Continuous Current
40A
Motor Size
550-Size
Motor Type
Brushless
Number of Poles
4
Outer Diameter
1.45" (37 mm)
Overload Protection
Yes
Product Application
Crawling, Surface
Product Length
2.28" (58 mm)
Product Weight
201g (including wire plug)
Programmable
Yes
Reverse
Yes
RPM/Volt (Kv)
1400Kv
Sensored
Yes
Shaft Diameter
0.125" (3 mm)
Shaft Length
0.62" (16 mm)
Water-Resistant

Yes
