Specifications:

• Billet Aluminum
• Molded Housing
• Reversible "L" Brackets to fit many Applications
• Adjustable "L" Brackets for Rotating Light
• 18 Individual LED Bulbs
• Super Bright Lighting
• Vented on Side to Dissipate Heat
• Standard Receiver Plug
• Connects Directly to Battery
• Capable of 11.1 Volts and 7.4 Volts
• 2.5mm Mounting Holes
• Hole to Hole Length: 4.45in / 113mm
• Overall Length: 4.92in / 125mm
• Overall Height: 0.59in / 15mm
• Light Bar Width: 4.53in / 115mm
• Light Bar Height: 0.44in / 11.3mm
• Weight: 1.48oz / 42g

Shown installed with with RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049), RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051), RC4WD Gelande II Truck Kit w/D90 Body Set and RC4WD Beast II 6x6 Truck Kit for example (Not Included)

Shown installed with Axial RR10 Bomber for example (Not Included)

Shown installed with Axial Yeti 1/10 for example (Not Included)

What's Included:

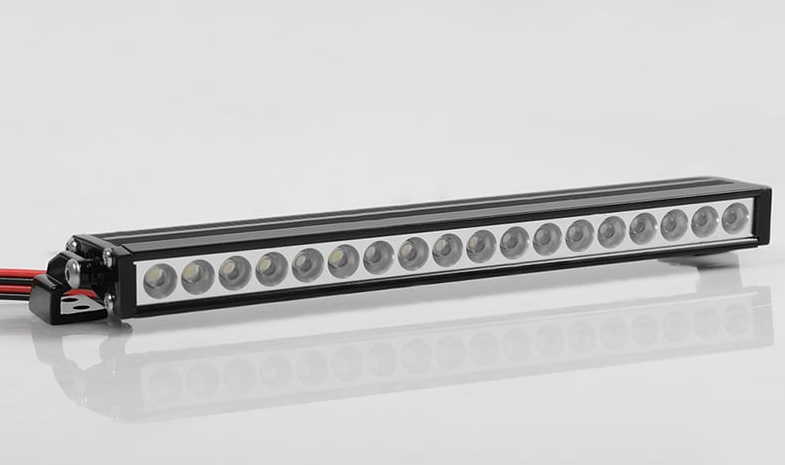

• 1x RC4WD 1/10 Baja Designs S8 LED Light Bar (120mm)
• 1x Baja Designs Decal Sheet

Optional Parts:

• RC4WD Strobe Lighting Unit (Z-S1573)
• RC4WD Mini ON/OFF Switch for Lighting Unit (Z-E0081)
• RC4WD Strobe Lighting Unit (Z-S1573)

Replacement Hardware:

• 4x M1.6 X 6mm Phillips Head Machine Screws (Silver) (Z-S1387)

Notes:

• Fits Axial Yeti 1/10
• Fits Axial RR10 Bomber
• This unit has to be connected directly to 2 or 3 cell lipo to operate properly with 7.4 volts and 11.1 volts.
• Use medium grade threadlock on "L"bracket nut to prevent loss and to keep the light in position.
• Mounting hardware can be found here. M2 SHCS / M2 BHCS
• While the lightbar comes with a standard receiver plug, this is only for ease of use. The receiver will not allow enough power for the lightbar and it will be dim. If you want the light to be bright, you will need to power it directly from your battery, or use a BEC to get more power to your receiver.
