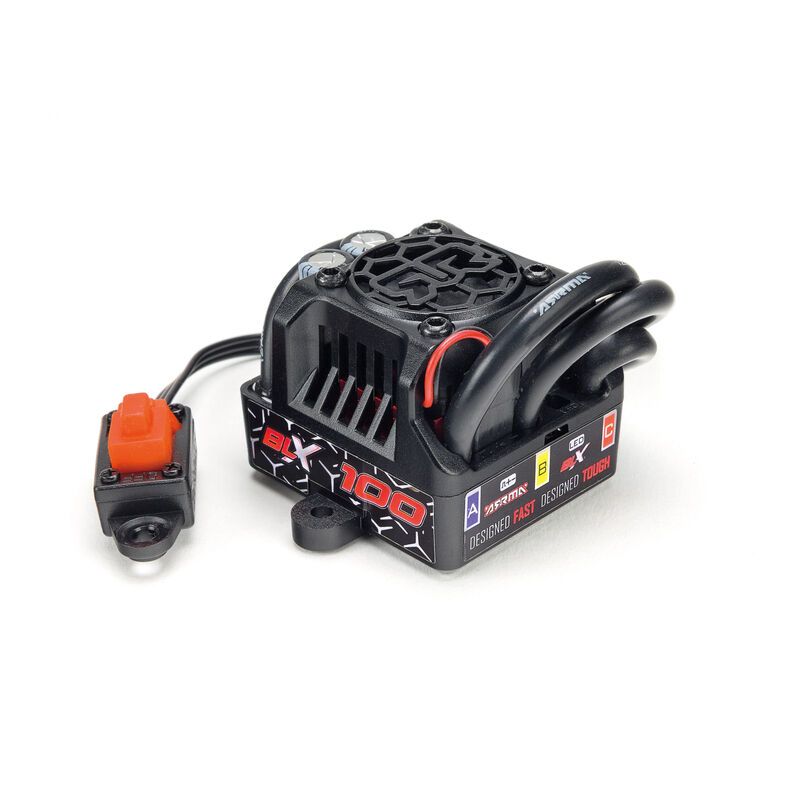

AR390069 BLX100 Brushless 10th 3S ESC 4x4

AR390069 BLX100 Brushless 10th 3S ESC 4x4

SKU ARAM0160
$131.99
Pre-order
Out of stock, available for pre-order
1
Save this product for later
Share this product with your friends
ShareSharePin it

AR390069 BLX100 Brushless 10th 3S ESC 4x4

Product Details
Brand: Arrma

Features

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

Battery usage 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
Low Voltage Cut-Off (LVC) 3.4V per cell
Thermal Protection Temperature 125°C / 257°F
Over-Voltage Protection Over 12.6V
BEC Voltage 6V
BEC Current 4A
ESC Length 43mm / 1.69"
ESC Height 34mm / 1.34"
ESC Width 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight 120g / 4.2oz
Receiver Wire Length 170mm / 6.70"
Battery Wire Length 125mm / 4.92"
Motor Wire Length (Including Connector) 200mm / 7.87"
Switch Length 110mm / 4.33"
Switch Width 12.8mm / 0.5"
Switch Height 18mm / 0.71"
Motor Bullet Connector Size 4mm / 0.16"
Wire Specifications 12AWG
ESC Battery Connector Type EC5
