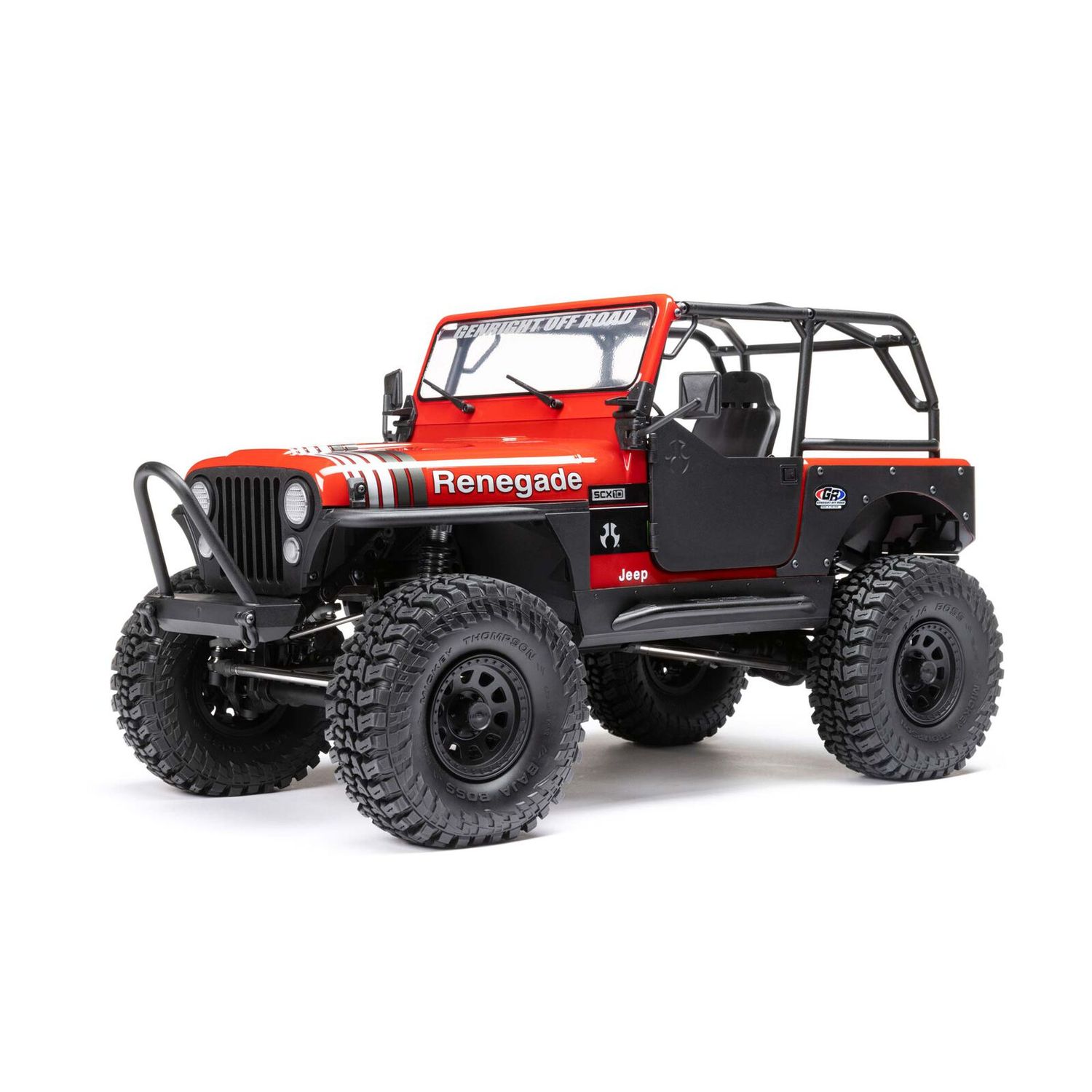

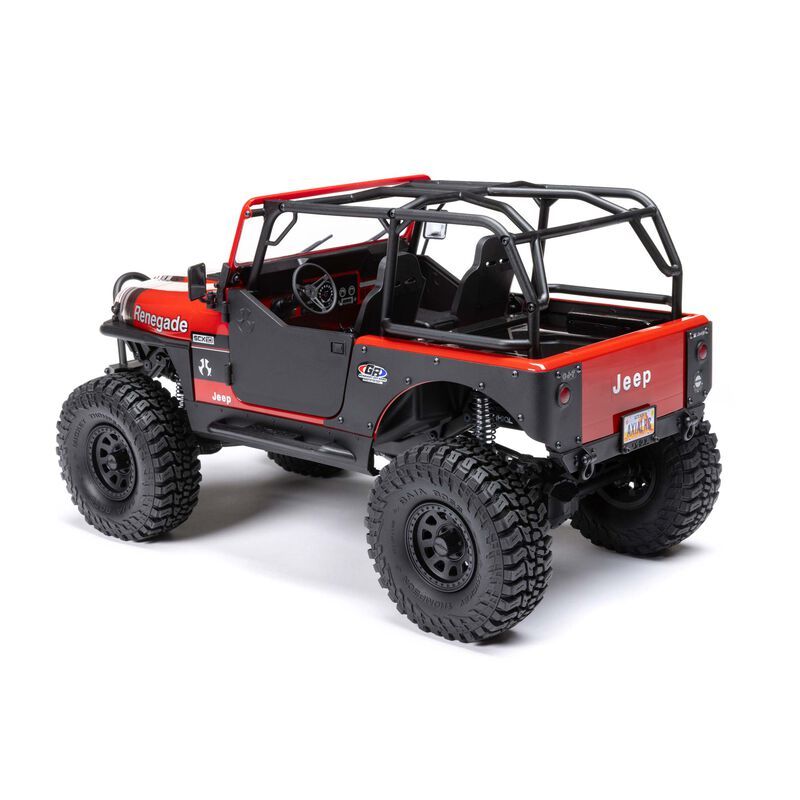

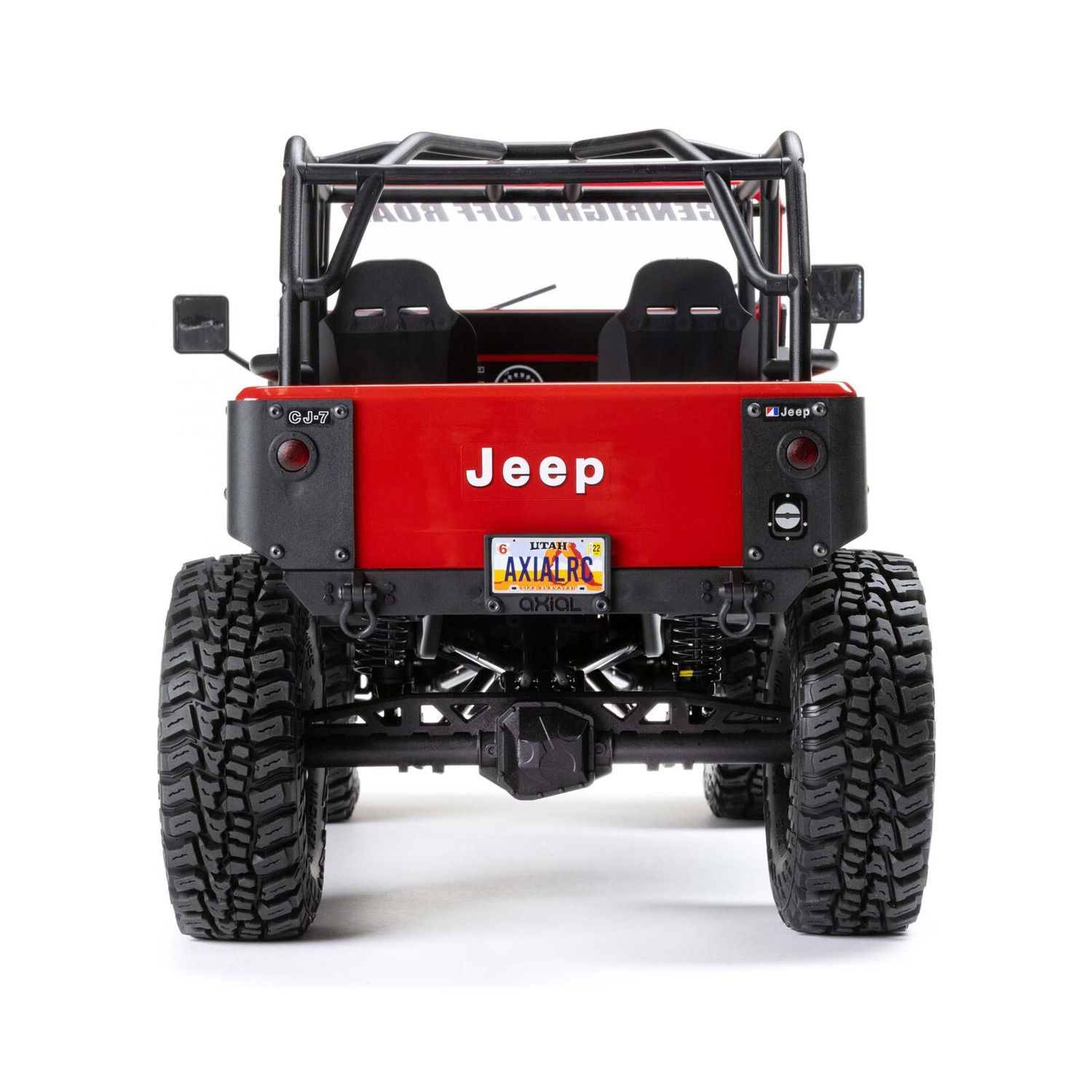

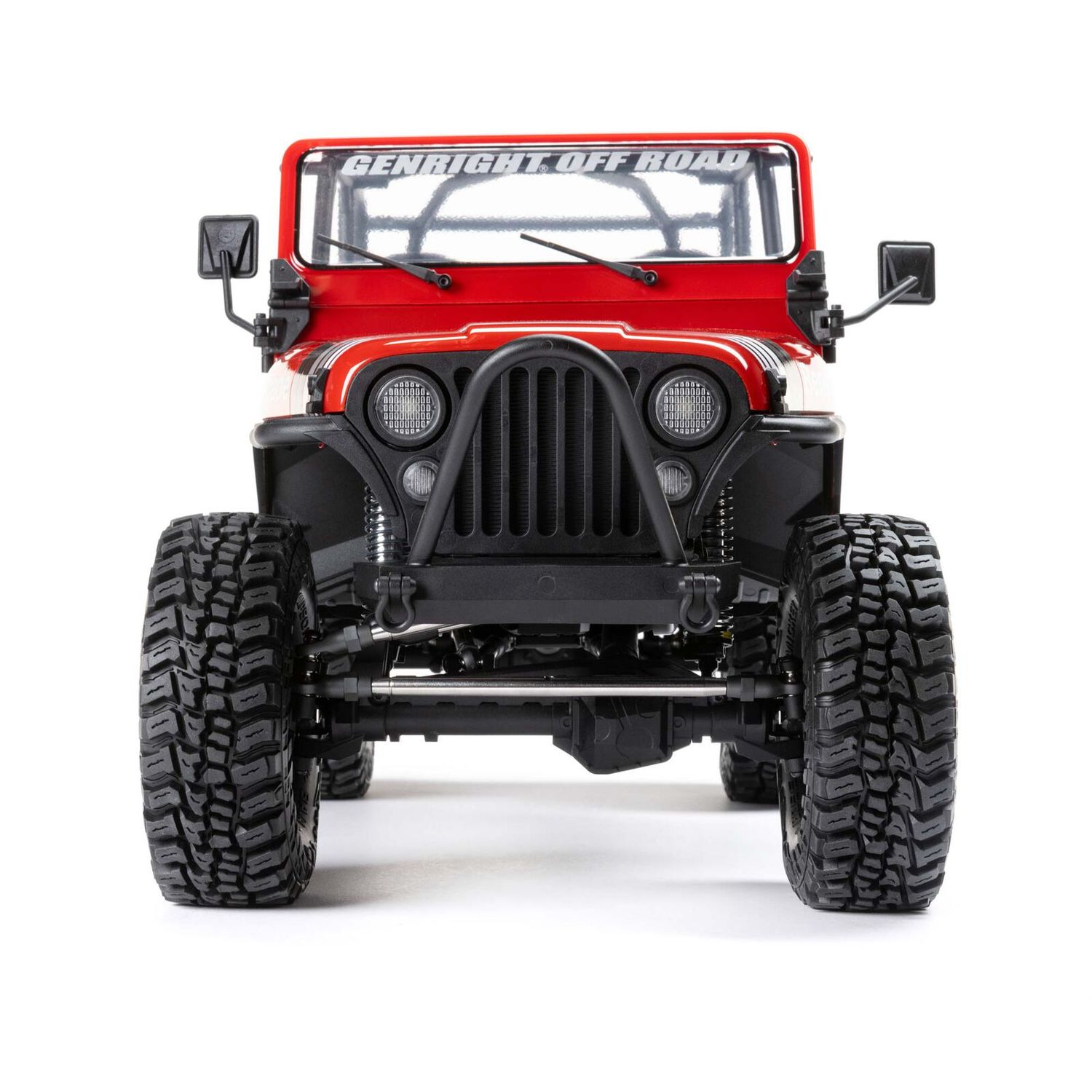

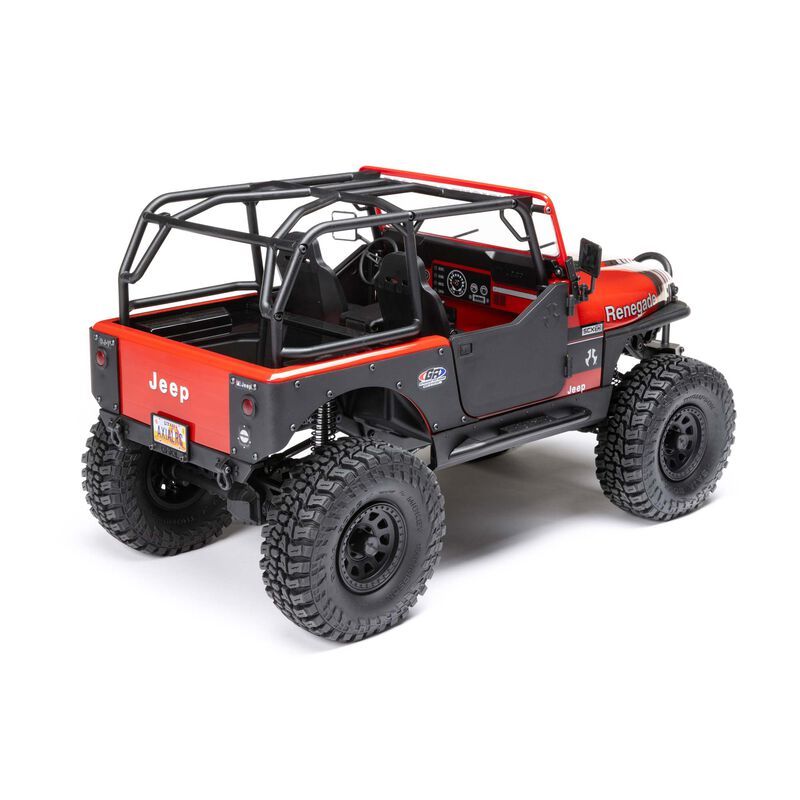

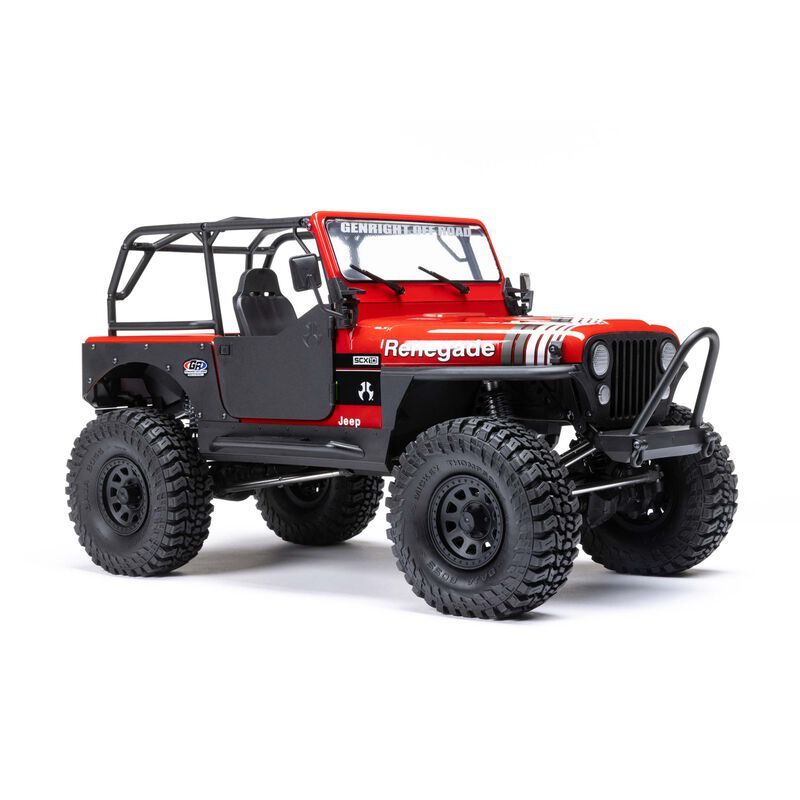

1/10 SCX10 III Jeep CJ-7 4X4 RTR Brushed Rock Crawler, Red
SKU AXI03008T1
$549.99
In stock
1
Save this product for later
1/10 SCX10 III Jeep CJ-7 4X4 RTR Brushed Rock Crawler, Red
Product Details
Brand: Axial
In The Box
- (1) Axial SCX10 III Jeep CJ-7 1/10 Scale 4WD RTR
- (1) Dynamite 35T Electric Motor (installed)
- (1) Spektrum S614 Waterproof Metal Gear Surface Servo, 23T (installed)
- (1) Spektrum SX108 Micro Analog Metal Gear Surface Servo, for Dig function (installed)
- (1) Spektrum Firma 40A Brushed Smart 2-in-1 ESC and Receiver (installed)
- (1) Spektrum DX3 Smart 2.4GHz Transmitter
- (4) AA Alkaline Transmitter Batteries
- (1) Product Manual
Needed to Complete
- (1) 2-3S LiPo Battery with EC3 or IC3 connector
- (1) Compatible Battery Charger
- Officially licensed Jeep CJ-7 body
- Full interior and many molded accessories
- Strong SCX10 III steel C-channel chassis
- AR45 standard straight axles
- Only battery and charger required
Features
- Officially licensed Jeep CJ-7 body
- Officially licensed Gen-Right bumpers and body armor
- Officially licensed Raceline Daytona beadlock wheels
- Officially licensed Mickey Thompson Baja Boss R35 compound tires
- Full interior with opening center console
- Strong SCX10 III steel C-channel chassis
- AR45 standard straight axles
- Multi-link solid axle suspension
- Oil-filled coil-over shocks
- All-metal gears
- Full ball bearings
- Spektrum DX3 Smart 3-channel transmitter
- Spektrum Firma 40A Smart 2-in-1 ESC and receiver unit
- Factory assembled and ready-to-run
- Only battery and charger required
OFFICIALLY LICENSED JEEP CJ-7 BODY

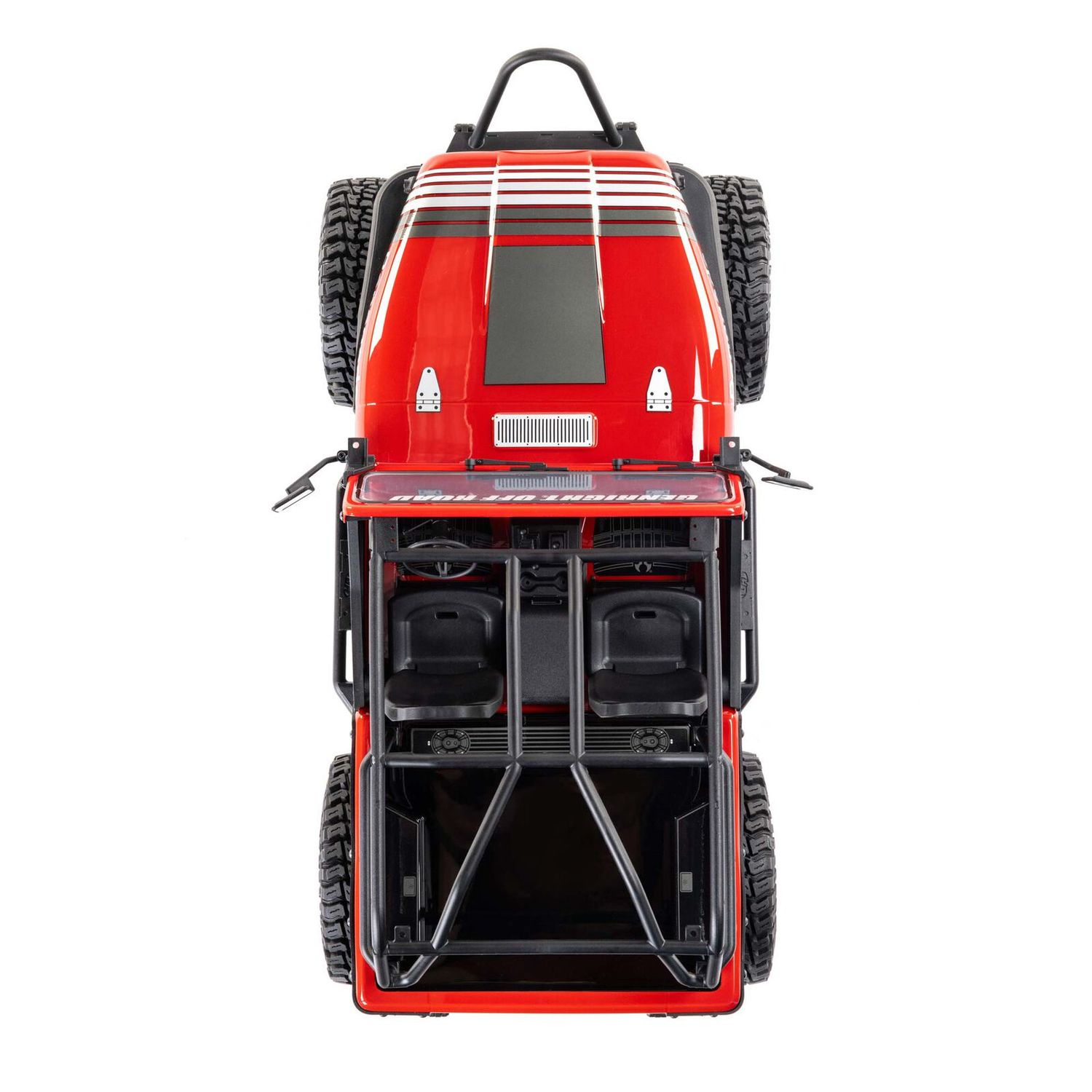

Made of durable polycarbonate, the officially licensed and factory-finished CJ-7 scale body comes richly detailed with officially licensed Gen-Right bumpers and body armor, a full injection-molded roll cage, plus a full interior including an opening center console. The doors can be opened or even removed.
SCX10 III STEEL C-CHANNEL CHASSIS
The CJ-7 is built on the proven, realistic Axial SCX10 III platform. Its steel C-channel chassis reduces frame flexing and increases the precision of suspension movement.
AR45 STANDARD AXLES
You’ll find another example of this rig’s scale realism in its AR45 standard straight axles, which mirror the axles used on the full-size CJ-7. The AR45 Straight Axles with offset front differential provide true scale looks and a low center of gravity. An optional overdrive gear is available separately (6-Bolt 27 8 Overdrive Gear Set, AXI332001).
ALUMINUM ADJUSTABLE COIL-OVER SHOCKS
The oil-filled shocks have aluminum threaded bodies and a single coil-over spring. The shocks are tunable for achieving the best overall setup.
DIG FUNCTION
With the transmission’s Dig function, you can instantly switch to front-wheel-drive by locking the rear axle from your transmitter for improved turning and control. The Dig servo is included and installed.
OPTIMIZED SUSPENSION
The multi-link solid axle suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability.
ALL-METAL GEARS
The CJ-7 transmission includes a full set of ball bearings and all-metal internal gears for the strength you need on the trails.
INSTALLED POWER SYSTEM
Factory-installed, the brushed power system features a Dynamite 35T 540-size motor and Spektrum Firma 40A Smart 2-in-1 ESC and Receiver unit.
OFFICIALLY LICENSED WHEELS & TIRES
Mounted on officially licensed Raceline Daytona beadlock wheels, the officially licensed Mickey Thompson Baja Boss R35 compound tires find secure footing wherever you crawl.
ADDITIONAL SCALE DETAILS INCLUDED
Axial designers had fun with this one. Additional scale details include a functional center console, removable coffee tumbler and soda can, transfer case twin stick shifters, automatic transmission shifter, bucket seats with slots for optional seatbelt harnesses, folding side view mirrors, and more!
SPEKTRUM DX3 SMART TRANSMITTER
Together, the Spektrum DX3 Smart transmitter and Firma 40A Smart 2-in-1 ESC and Receiver offer such Smart technology benefits as showing the real-time power status of an on-board Smart LiPo battery. The radio system’s third channel operates the CJ-7 Dig feature.
Product Specs
Gear Pitch
32P
Servos
Included
Product Weight
6.9lb (3.12kg)
Tire Tread
Mickey Thompson Baja Boss
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Battery
Sold Separately
Connector Type
EC3, IC3
Ground Clearance
2.75 in (69.8mm)
Internal Gear Ratio
45.6:1
Motor Size
540 size (Axial 35T Motor included)
Product Length
18.9" (480 mm)
Spur Gear
52T
Steering Type
2WS
Suspension
Multi-Link Solid Axle
Wheel Width
1.0 in (25.4mm)
Charger
Sold Separately
Differential
Locked
Receiver
Included
Body
Polycarbonate Painted
Pinion
14T
Scale
1/10
Final Drive Ratio
45.6:1
Motor Type
Brushed
Speed Control
Included
Wheelbase
12.3" (312 mm)
Inner Tire / Outer Wheel Diameter
1.9 in
Product Width
9.25" (235 mm)
Radio
Included
Ball Bearings
Full Set
Chassis
Adjustable Steel C-channel
Completion Level
Ready-To-Run
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Make
Jeep
Product Height
9.75" (248 mm)
Tire Compound
R35
Wheel Hex Size
12mm
